Comprehensive integrated solutions, exploring the infinite possibilities of AI.

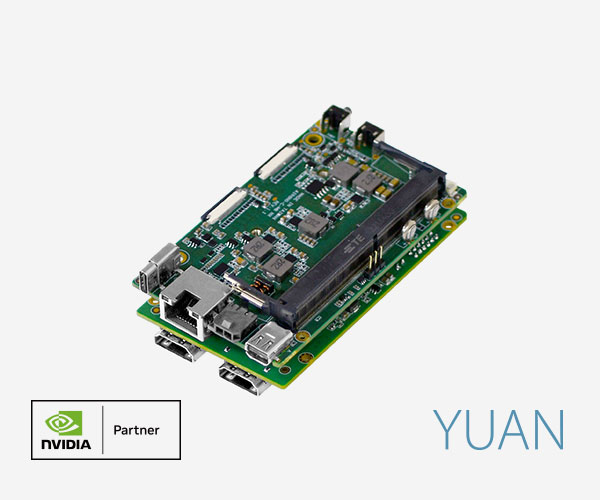

AIR6N0-C-MB NX HDMI2.0
A compactly designed AI development kit.
Product Features
Supports input
Supports loop output
100g 90x55mm
Made in Taiwan
Product Introduction
File Download
Using NVIDIA platform.
Supports NVIDIA SDK for AI application development.
Using the NVIDIA Jetson Orin NX motherboard as the core, it provides up to 70/100 TOPS of AI computing power, meeting the needs of high-performance AI application projects.
Compact size and lightweight.
The AIR6N0 series is capable of providing up to 100 TOPS of AI high-performance computing within a standard PCB size, while also offering low-power, fanless options to meet the diverse needs of customers.
Multiple I/O daughterboards with flexible combinations.
The AIR6N0 development has created various kits, including commonly used audio and video HDMI 2.1, broadcast 12G-SDI, and automotive GMSL2, to meet a wide range of I/O interface requirements.
Customized I/O daughterboard design
In addition to the standard I/O daughterboards currently offered for the AIR6N0, we welcome discussions regarding your specific needs. We will provide customized I/O products to meet the diverse application scenarios you require.
Rich AI pretrained models
Provides over 40 AI pretrained models, reducing the time for customers to adopt artificial intelligence. These models can be customized according to individual customer needs, enhancing the accuracy and capabilities of video analysis.
Rapid development, immediate market launch.
We provide BSP (Board Support Package) services, offering hardware initialization, operating system, and driver environment loading for development boards. By optimizing hardware configuration for performance and compatibility, users can quickly deploy software on the platform, accelerating the product development process.
An OEM partner of NVIDIA.
Through our close collaboration with NVIDIA, we not only leverage NVIDIA's advanced technology but also provide comprehensive intelligent vision solutions. This enables the AIR6N0 to deliver outstanding performance across various application scenarios.
Offers options for different computing power requirements.
Product Specifications
| Hardware Configuration | ||
|---|---|---|
| Version | NVIDIA Jetson Orin™ NX 8GB | NVIDIA Jetson Orin™ NX 16GB |
| CPU | 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 | 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 |
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores | |
| AI Performance | 70 TOPS | 100 TOPS |
| Storage | 8GB LPDDR5 | 16GB LPDDR5 |
| Interface | |
|---|---|
| Storage | Supports external NVMe 1×Micro SD Card Slot |
| Display | 1×Mini DP1.4 output |
| Expansion | 1×M.2 2230 M Key PCIe Gen4×2 Slot 1×M.2 2230 E Key PCIe Gen4×1 Slot |
| Network | 1×RJ45 for 10/100/1000Mbps Ethernet (Duplex) |
| USB | 1×USB3.2 Gen2 ( Type-C ) ※Can connect to Keyboard & Mouse. |
| MIPI | 2×4MIPI CSI-2 Lanes (D-PHY 2.1, MIPI camera, capture card) |
| Image input | 1xHDMI2.0 |
| Image output | 1xHDMI2.0 (Loop) |
| I/O | 14 Pin Header 1×USB2.0 4×GPIO 1×UART 1×I2C |
| 3 Pin Header 1×UART |
|
| 2×6 Pin Header 3×GPIO 1×RS485 1×I2C |
|
| 8 Pin Phoenix Connector 3×GPIO 1×RS232 1×I2C |
|
| Image | |
|---|---|
| Encoding | AV1 ( UHP ) 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30 |
| H.265 ( UHP ) 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30 |
|
| H.264 ( UHP ) 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30 |
|
| Decoding | AV1 ( Main Profile ) 1×8K30 | 2×4K60 | 4×4K30 | 9×1080p60 | 20×1080p30 |
| H.265 ( Main, Main10 ) 1×8K30 | 2×4K60 | 4×4K30 | 9×1080p60 | 18×1080p30 |
|
| H.264 ( Baseline, Main, High ) 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30 |
|
| VP9 ( Profile 0, Profile 2 ) 1×4K60 | 3×4K30 | 7×1080p60 | 15×1080p30 |
|
| SDK | ||
|---|---|---|
| QCAP | Capture | High-performance renderer |
| Image snapshot | ||
| De-interlacing, Alpha blending engine | ||
| Auto signal detection | ||
| 2D/3D video, audio, and VANC stream capture | ||
| Recording | Encryption / Synchronization / Duplication / Audio Recording | |
| Time shift / Rewind / Scheduled recording / Recording | ||
| Multi-stream (3D) Recording | ||
| Animation Transition Effects | ||
| Video Cropping, Scaling, and Alpha Blending Engine | ||
| Streaming | 2D/3D Universal Stream Client | |
| 2D/3D Multi-codec Streaming Media Server | ||
| RTSP、RTMP、HLS、SRT、TS、WebRTC。 NDI-HX 、Dante AV-H | ||
| Animation Transition Effects | ||
| Video Cropping, Scaling, and Alpha Blending Engine | ||
| QDEEP | Facial Recognition | |
| Object Detection | ||
| Optical Character Recognition (OCR) | ||
| License Plate Recognition | ||
| Environment | |
|---|---|
| OS | Ubuntu: 20.04 |
| Kernel | 5.10.104-tegra or higher version |
| BSP | Linux for Tegra(L4T) R35.3.1 or higher version |
| SDK | JetPack 5.1.1 or Higher |
| Power | DC input : 9~24V |
| Power consumption | TBA |
| Operating temperature | 0~60℃ |
| Temperature range | -20~80℃ |
Appearance Introduction
Technical Support
Jetson Orin is equipped with exceptional computing power and ample memory, making it particularly suitable for generative AI applications. Generative AI is better suited for various situational uses compared to traditional discriminative AI. Unsupervised or semi-supervised learning does not require repetitive labeling and training, allowing generative AI to better understand hidden information within videos, making it easier to recognize and locate objects in different scenes.
It uses AV1 4:4:4 encoding and decoding technology, ensuring minimal compression loss, preserving more of the original video details, and providing higher transmission speed and clarity.
It supports NVIDIA® GPUDirect® and GPUDirect® Remote Direct Memory Access (RDMA) technology, enhancing image access performance and reducing CPU load, meeting the demands of ultra-low latency video applications.
Based on the Orin NX platform, the AIR6N0 integrates a multi-channel 5G module design, suitable for long-distance video transmission. It boasts 4K60 4:4:4 video capture capability, advanced H26X and AV1 encoding, and YUAN's SkyLink X streaming technology, achieving ultra-low latency (≤50ms) from capture to display, making it ideal for remote control applications such as automotive and drones.
AIR series comparison table
Diverse Applications
With the development of 5G networks and artificial intelligence technologies, the application of edge computing will become more widespread and complement cloud computing, jointly driving the popularization of digital transformation and intelligent applications. Edge computing will play an increasingly important role in improving computing efficiency, optimizing user experience, and driving digital innovation across various industries.
Product List
AIR6N0-C-MB NX HDMI2.0 x1
Power transformer x1
Product warranty card x1
※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.
