GPU Server

ESC8000-E12P

AI GPU Server for Demanding AI Training and Inference

A 4U dual-processor server powered by Intel® Xeon® 6, supporting up to eight dual-slot NVIDIA® H200 GPUs, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, or Intel® Gaudi® 3 PCIe AI accelerators. Features up to 32 DIMMs, dual PCIe® 5.0 slots, dual M.2 PCIe 5.0, and up to six 2.5" U.2 NVMe drives.

Product Introduction

High-Density 4U Compute Server

Supports up to eight dual-slot GPUs, active or passive. Flexible scalability with options like NVIDIA NVLink Bridge. Built for enterprise AI and HPC workloads.

Intel Xeon 6 Processors

A major leap in performance and efficiency, built for advanced AI, networking, and data center workloads. With an all P-core architecture, it delivers the compute power for demanding enterprise workloads. Support for high-speed DDR5 memory and PCIe 5.0 I/O enables seamless scalability and higher throughput. Optimized power efficiency and a robust design make it ready for the next generation of data centers.

Flexible Expansion. Built In.

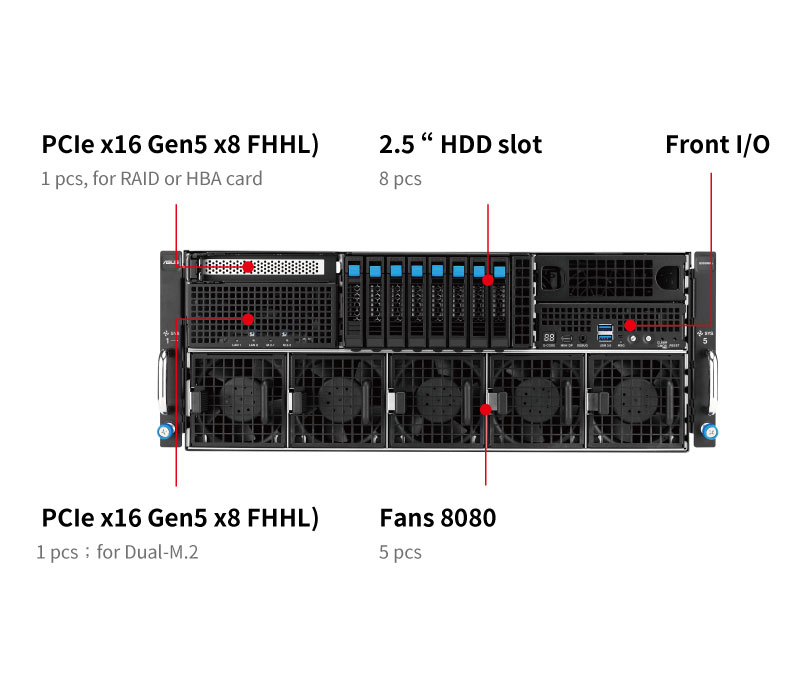

Fornt

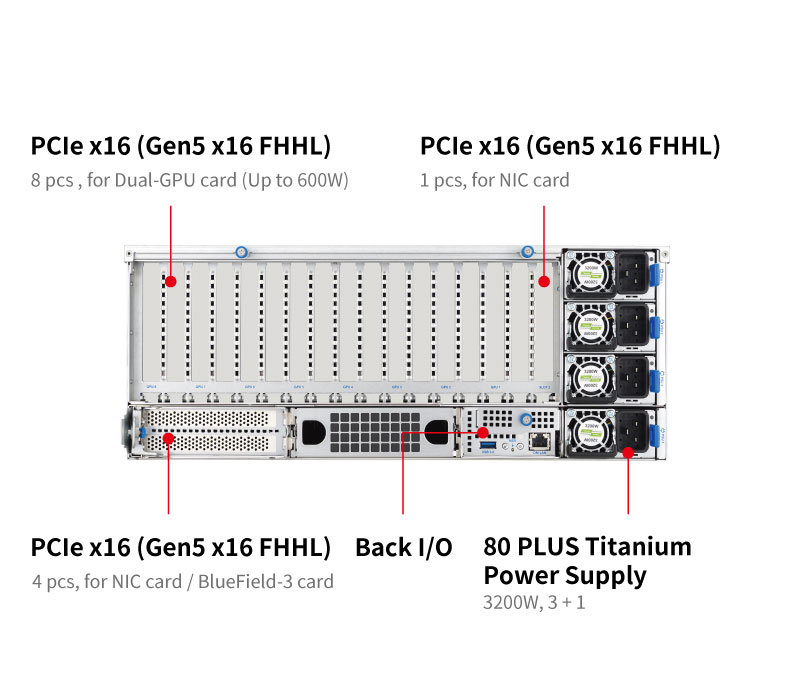

Back

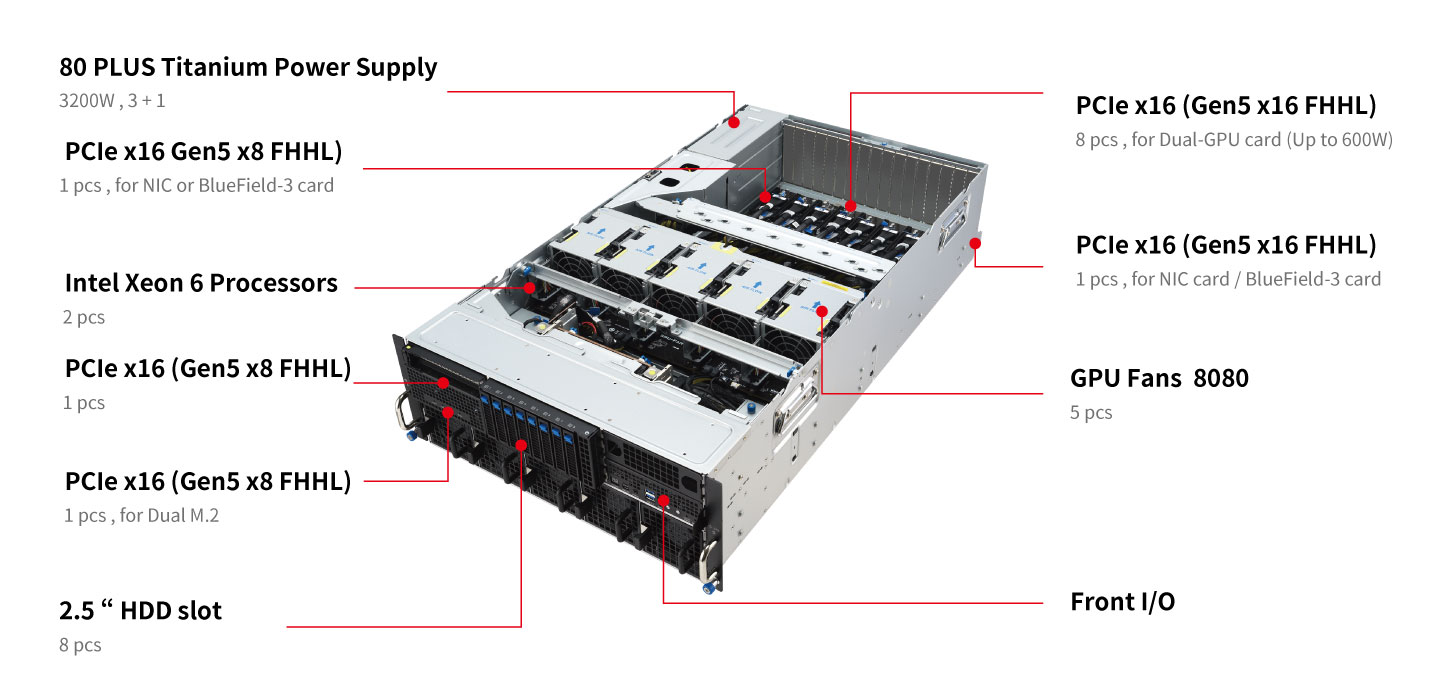

Inside

High-Bandwidth PCIe 5.0. Scalable NVMe Storage.

Built for next-gen performance and modern workloads. Two direct PCIe 5.0 slots for high-bandwidth NIC and DPU integration. Up to six U.2 NVMe drives with flexible RAID support.
Built for data-intensive and accelerated workloads.

Tool-Free Design. Easy Maintenance.

Tool-Free Removal

Quick Setup

Tool-Free PCIe Card Removal and Fast Installation

IT infrastructure-management software

Streamline IT operations via a single dashboard

ASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.

BMC

Remote server management

ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

Specifications

Processor / System Bus	2 x LGA 4710 sockets Intel® Xeon® 6500/6700 processors Up to 350 TDP
Memory	Total Slots: 32 (8 channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB Memory Type: DDR5 6400 (1DPC) / 5200 (2DPC) RDIMM Memory Size: 128GB, 96GB, 64GB, 32GB RDIMM * Refer to ASUS server AVL for the latest update
Expansion Slots	-8 x PCIe x 16 for dual-slot GPU cards (Gen5 x 16 link, FHFL) -5 x PCIe x 16 for NIC/ BlueField-3 cards (Gen5 x 16 link, FHFL) -1 x PCIe x 16 (Gen5 x 8 link, FHHL)
Data Storage Application	8 x 2.5" Front Hot-swap Storage Bays (Backplane supports up to 8 x NVMe) 2 x M.2 socket (Gen 5 x4 link, up to 22110)
Networking	2 x 10GbE LAN ports (RJ45, X710-AT2) 1 x Management Port (RJ45)
Multi-GPU Support	Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports	1 x Mini DisplayPort 2 x USB 5Gbps ports 1 x Debug port
Rear I/O Ports	1 x USB 5Gbps port 2 x RJ-45 LAN ports 1 x RJ-45 management LAN port
Switch/LED	Front: 1 x Power switch/LED 1 x Location switch/LED 1 x Message LED 1 x Clear CMOS switch 1 x Reset switch 2 x M.2 LEDs 2 x LAN LEDs 1 x Q-Code/Port 80 LED Rear: 1 x Power switch/LED 1 x Location switch/LED 1 x Message LED
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Tools	ASUS Control Center Enterprise (in-band) ASMB12-iKVM for (out-of-band/BMC AST2600)
Certification and Safety	BSMI, CB, CE, FCC(Class A), RCM
Dimensions	800mm x 439.5mm x 175mm 31.5” x 17.3” x 6.9”
Form Factor	4U
Weight	Net Weight: 42 Kg Gross Weight: 44.23 Kg
Power Supply	3+1 redundant 3200W 80 PLUS Titanium power supply 20-240 Vac, 16A (x4) 50/60Hz
Environment	Operating temperature: 10°C ~ 35°C* Non-operating temperature: -40°C ~ 60°C Non-operating humidity: 20% ~ 95% (Non-condensing) *For operating temperatures above 30°C, please contact your local sales representative
FRU Part List	Intel Xeon 6 CPU CARRIER KIT (E2A): 90SKS000-MUKBN0 Intel Xeon 6 CPU CARRIER KIT (E2B): 90SKS000-MULBN0 Intel Xeon 6 CPU CARRIER KIT (E2A+E2B): 90SKS000-MUMBN0 GPU Fan module 80x80x80mm: 90SKS000-MR0BN0 System Fan module 80x80x80mm: 90SKS000-MR1BN0 Intel Xeon 6 CPU HS: 90SKS000-MJTAN0 HDD TRAY TOOLLESS ASY: 90SKH000-MPPBN0 3200W TITANIUM PSU: 90SKS000-MMCBN0 1M RAIL KIT: 90SKS000-MR2BN0 2U RAIL KIT (support cable arm): 90SKS000-MR3BN0 CABLE ARM: 90SKS000-MR4BN0 9560-16I RAID Cable Kit: 90SKS000-MUHBN0 9670-24I RAID Cable Kit: 90SKS000-MUIBN0 MINIDP TO VGA DONGLE: 90SKS000-MU3BN0
