UPS102 MINI HD Network Streaming Box

streaming box

Product Features

Maximum Supported Resolution

One-Click Fast Streaming

Web Configuration

Button to Switch Streaming/Signal Source

Input Terminals

Streaming Mode

Support

Excellent Heat Dissipation

Supports Screen Cropping Feature

Mode Selection

Product Introduction

Specification Table

File Download

Panel Overview

Supports Multiple Streaming Protocols

Supports Various Streaming Platforms

Supports YouTube / Facebook / Adobe Flash Media / Wowza / Twitch / Ustream and other streaming platform services

Suitable for Various Industry Network Streaming Video Applications

Saves Setup and Maintenance Costs

Supports OSD Subtitle Function

Digital/Traditional Chinese/Simplified Chinese/English/Japanese/Korean, etc.

Customizable Display Image Cropping Height and Width, and Image Start Coordinates

Cropping Width: 960, Cropping Height: 540, Red Box Indicates Display Area

The red box indicates cropping width: 960, cropping height: 540. The blue area indicates start coordinates X=128, Y=128. The green box indicates display area.

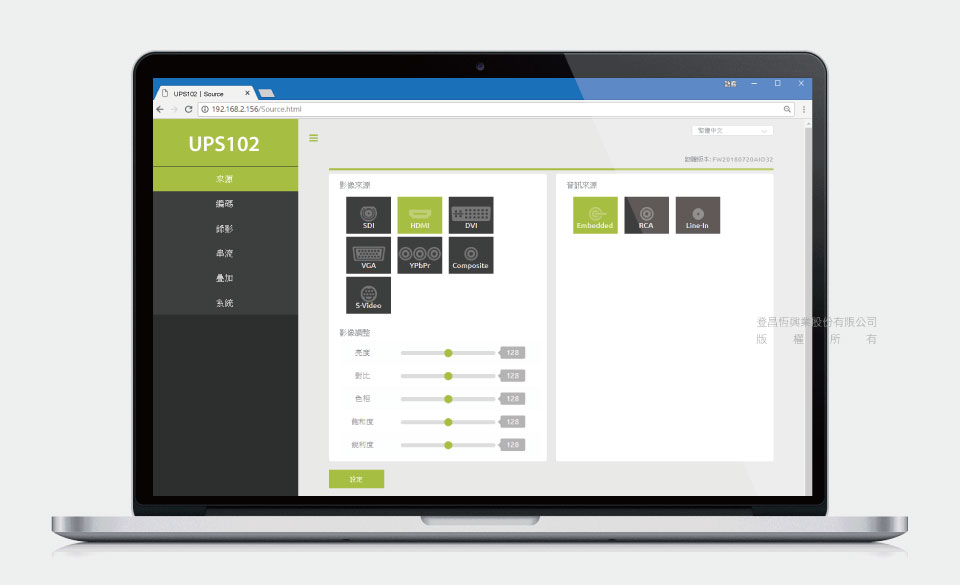

Provides a Simple Web Configuration Interface

Supports YouTube Quick Streaming

RTMP can stream simultaneously to up to two identical or different network streaming platforms.

※ Please note, if the UPS102 streams only the main stream, the streaming limit is 1080P60. If streaming both main + substreams, the main stream limit is 1080P30, and the substream is 960*540P30.

※ Only TS UDP supports main stream + substream streaming.

Metal Design

Durable and Excellent Heat Dissipation

Product Application

產品接線圖

Internal Desktop/Laptop Audio-Video Streaming

Streaming Video Live Platform

Product List

UPS102 x1

Power Adapter x1

Antenna x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

Specification

Please drag left and right to view the specification table

Specifications

Maximum Resolution

Recording Method

Audio-Video Input Interface

Video Specifications

Audio Specifications

Network Specifications

Supported Streaming Formats

Additional Support

System Requirements

Power Consumption

Product Dimensions

Specifications

Content

Maximum Resolution

60/50fps @ 1920x1080p

Recording Method

Hardware Compression, Instant Mode

Audio-Video Input Interface

Video
•1 x HDMI
•1 x SDI
Audio
•1 x 3.5mm Stereo Analog Audio Source
SDI/HDMI Embedded Audio
Supports bandwidth up to 10Mbps
Supports resolution

Video Specifications

H.264/AVC , Baseline / Main / High Profile
支援頻寬可達10Mbps 支援解析度
輸入:
•1920x1080 (P60/P50/P30/P25/P24/i60/i50)
•1280x720 (P60/P50), 1280x1024 (P60),1280x960 (P60)
•1024x768 (P60),800x600 (P60), 720x480 (P60/i60)
•640x480 (P60), 720x576 (P50/i50)

Output:
•128x128 to 1920x1080 (P60)
*Output resolution only supports screen scaling.

Audio Specifications

•AAC-LC
•Supports input frequency: 32Kbps to 384Kbps
•Sample frequency: 48KHz, 16bit

Network Specifications

•1x RJ45 connector supports 10/100Mbps
•DHCP client
Wifi:
•802.11b/g/n supports 150Mbps PHY transmission rate

Supported Streaming Formats

• TS over UDP/HTTP (supports point-to-point and multicast transmission)
•RTSP over HTTP/TCP/UDP (RTSP Elementary Stream)
•RTMP(Publish)
•HLS

Additional Support

•Real-time parameter settings
•Web UI control available
•Firmware upgradable
LED indicator

System Requirements

Power Consumption

DC 12V (provided by DC power adapter)

Product Dimensions

100 (W) * 26 (H) * 65.6 (D) mm

File Download

Date

Type

Operating System

Description

File Download

2020.04.10

Manual

Details

2.7MB

PDF

2019.08.14

Product Catalog

Details

1.3MB

PDF

2020.02.27

Application

Details

Win 7 32-bit

Win 7 64-bit

Win 8 32-bit

Win 8 64-bit

Win 8.1 32-bit

Win 8.1 64-bit

Win 10 32-bit

Win 10 64-bit

13.8MB

ZIP

Using IPFinder to Search for the UPS102 IP Address and Access the Configuration Page.

2019.08.07

Application

Details

Win 7 32-bit

Win 7 64-bit

Win 8 32-bit

Win 8 64-bit

Win 8.1 32-bit

Win 8.1 64-bit

Win 10 32-bit

Win 10 64-bit

0.8MB

ZIP

Using IPFinder to Search for the UPS102 IP Address and Access the Configuration Page.
