CPLUS-V8PT 4K UHD 2進8出 HDMI 分配器

HDMI distributor

CPLUS-V8PT 4K UHD 2-In 8-Out HDMI Splitter

Product Features

Supported Features

Compatibility

Connects up to 8 Devices

Switchable Between 2 Inputs

Supports High Dynamic Range (HDR) Imaging

Supports LPCM

Transmission Bandwidth

Stable Processing

Equipped With

Made in Taiwan

Product Introduction

File Download

Product Specifications

Supports HDMI 18Gbps (600MHz) bandwidth, with HDR, 3D video, and 4K UHD resolution.
Compatible with DVI 1.0 audio/video interface (requires HDMI-DVI adapter).
Supports HDCP 1.x & 2.2 high-bandwidth digital content protection.
Connects up to 8 HDMI displays and allows switching between 2 HDMI input sources, with automatic signal source switching.
Group Mode: Supports outputting two separate 1-in-4 HDMI distribution signals.
Supports ultra-high-definition resolution up to:
4K@50/60Hz (YUV 4:4:4, 8-bit).
Supports 10-bit and 12-bit HDR (High Dynamic Range) imaging.
Supports LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream digital audio.
Each output port can automatically downscale 4K to 1080p and convert 4:4:4 color space to 4:2:0, depending on the connected display’s EDID settings.
Each output port has an independent HDCP management engine for stable HDCP signal processing.
Equipped with 8 internal EDID settings, 8 external EDID settings, and 2 custom EDID settings.
CEC Active Source function allows automatic restoration of the connected display’s input source settings.
Operated via front panel buttons, on-screen display (OSD) menu, and RS-232 commands.

Product Application

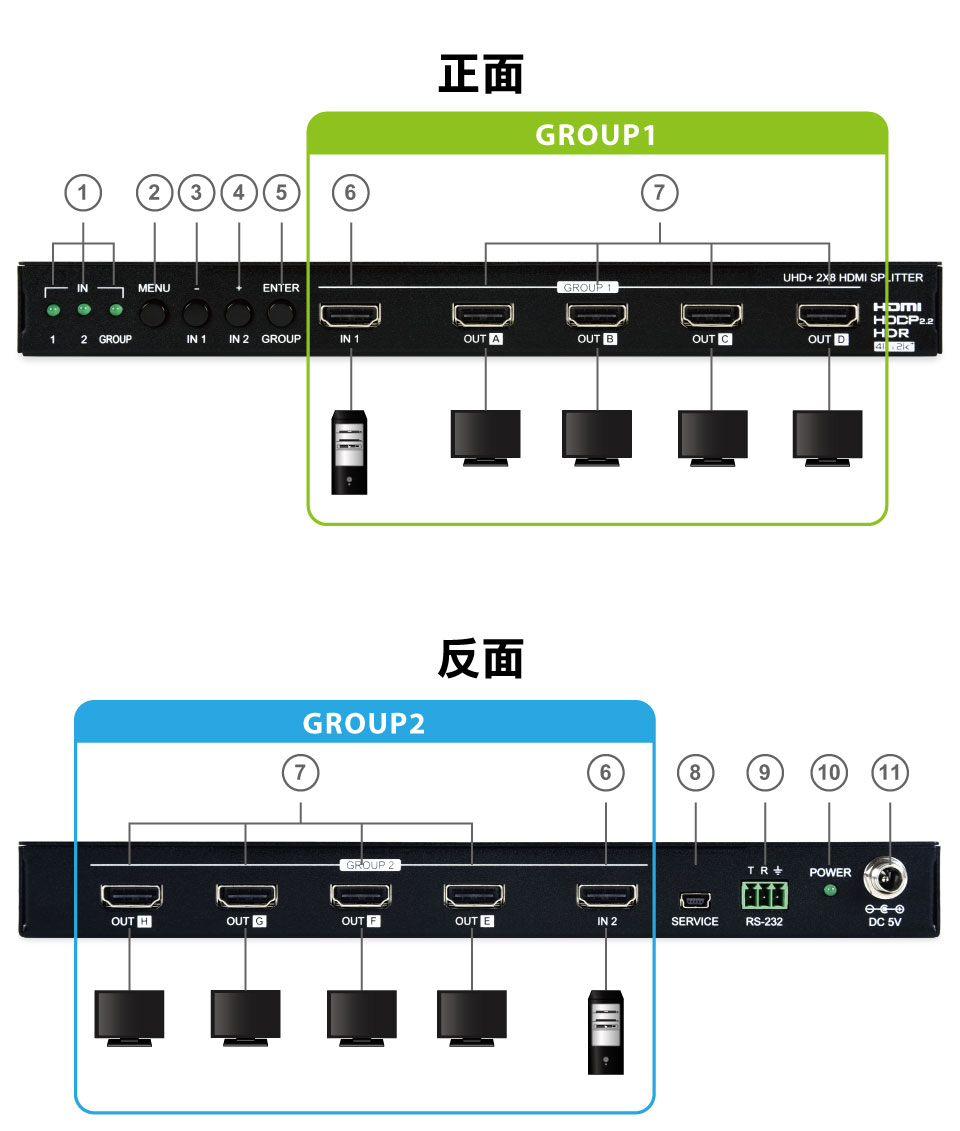

Signal Indicators
MENU: Enter or exit the OSD menu.
"- & IN 1":
Move down or adjust OSD options within the menu.
When outside the OSD menu, press this button to switch to Input 1.
"+ & IN 2":
Move up or adjust OSD options within the menu.
When outside the OSD menu, press this button to switch to Input 2.
ENTER & GROUP:
Press to confirm a selection within the OSD menu.
When outside the OSD menu, press this button to enable or disable Group Mode.
HDMI Input
HDMI Output
Firmware Update Port
RS-232: Connects directly to a PC, laptop, or any device using a 3-pin cable to send commands to an RS-232 device.
POWER: Power indicator light.
Power Input Port: DC 5V.

Product List

CPLUS-V8PT Unit × 1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2019.04.15

Manual

Details

1.4MB

PDF
