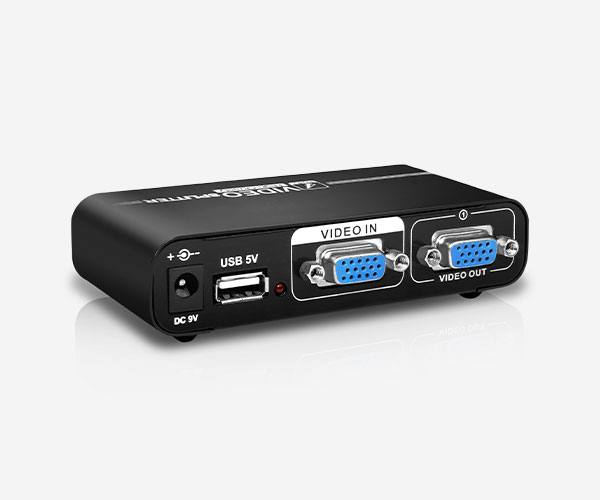

VSP104 VGA 1-In 4-Out Splitter

VGA distributor

Product Features

Resolution

Specifications

Provide / Offers

Metal Casing

Product Introduction

File Download

Four screens synchronized display

Outputs a single video signal simultaneously to screens or projectors, making it suitable for various applications.

Product Application

Product Specifications

Connects one VGA source and simultaneously outputs to four VGA displays or projectors.
Plug-and-play with a fully external hardware design, ensuring no system compatibility issues.
Supports USB power supply for use in environments without power outlets.

Input	D-SUB 15 Pin (Female) ×1
Output	D-SUB 15 Pin (Female) ×4
Bandwidth	550 MHz
Resolution	Supports up to 1920×1440 resolution, compatible with DDC, DDC2, DDC2B
Transmission Distance	Maximum transmission distance up to 50 meters*
Power Supply	DC 5~9V (DC Port/USB)
Dimensions	110×56×25 mm
Weight	170 g(±1)
Material	Metal

※Transmission distance may vary depending on the cable used. It is recommended to use 2919 high-isolation cables.

※This product does not include a USB power cable. If USB power is required, please purchase separately.

Product List

VSP104 Main Unit x1

Power Adapter x1

Product warranty card x1

USB Power Cable (Optional)

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2023.01.30

Product Catalog

Details

0.9MB

PDF
