AC400 HDMI影音分離器

audio converter

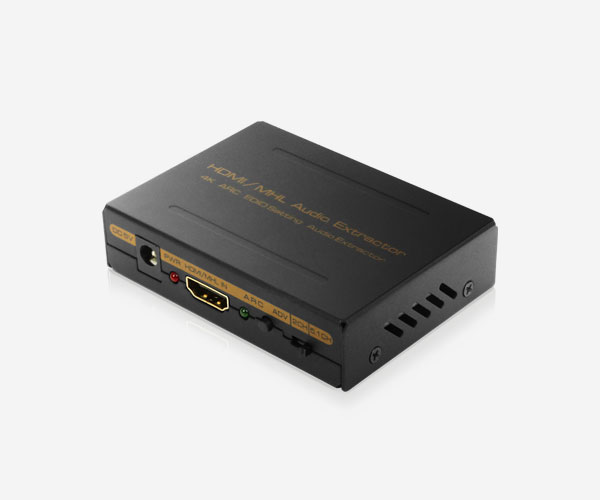

AC400 HDMI Audio & Video Separator

The Best Tool for Separating Video & Audio Outputs

What is a Converter?
A "converter" transforms different types of signals. Common examples include converting analog signals to digital or vice versa. Examples include:
●Video signal conversions: AV to VGA, AV to D-Sub, VGA to AV, HDMI to VGA, HDMI to AV, VGA to HDMI, SDI to HDMI, HDMI to SDI, DisplayPort to HDMI, DP to HDMI, mini DP to HDMI, mini DP to VGA, mini DP to DVI
●Video system conversions: NTSC to PAL, PAL to NTSC
●Audio conversions: Optical to analog, coaxial to optical, optical to coaxial

Product Features

High-Quality Video

Audio Sampling

Dual Audio Output

HDMI1.4

Audio Return Function

Product Introduction

File Download

The AC400 HDMI Audio & Video Separator is designed for scenarios requiring separate video and audio outputs. It provides one HDMI input, one HDMI video output, and one optical or R/L analog audio output. It also supports HDMI 1.4 Audio Return Channel (ARC) function (only supported via optical output).

Applications

Education & Lectures – Record audio separately for later use.
Video Post-Production – Edit video and audio separately.
Conference Rooms & AV Integrations – Bridge compatibility between old and new equipment.

Product interface

Product Specifications

Complies with HDMI 1.4 / HDCP 1.4 standards.
Extracts audio from HDMI/MHL sources.
Provides TOSLink optical and RCA analog stereo outputs.
Supports HDMI ARC (Audio Return Channel) (TOSLink only).
Supports resolutions: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 4K 3840x2160p@30Hz.
Supports MHL 2.0 for mobile or tablet connections (up to 1080p60).
Supports HDMI 3D signals, including 1080p24 and 720p50/60 resolutions.
HDMI audio sampling rate: 24-bit 192KHz.
OPTICAL (TOSLink) audio sampling rate: 48KHz.
Supports digital audio formats: PCM 2.0 / Dolby 5.1 / DTS 5.1.
Supports analog audio formats: LPCM 2.0 / LPCM 5.1.
1-year product warranty.
Dimensions: 84 × 69 × 21 mm.

Input Formats	RCA Analog Stereo	TOSLink Optical
PCM 2.0 / 5.1 / 7.1 Channel	O	O
Dolby Digital / DTS 2 Channel	X	O
HDMI ARC	X	O

Product List

AC400 x1

DC5V/1.2A Power Adapter x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.
