HC107A HDMI TO VGA Video Converter

HDMI converter

Product Features

Resolution

Stereo output

Audio output jack (includes audio cable)

Power input for more stable transmission

Backward compatible with HDMI 1.0/1.1/1.2

Product Introduction

File Download

Product Specifications

Aluminum alloy shell
Can convert HDMI digital signals to VGA and stereo output
Supports all HDMI to VGA conversions (Micro HDMI / Mini HDMI / HDMI to VGA)
Compatible with HDMI 1.3 specification, backward compatible with HDMI 1.0/1.1/1.2
Input terminal: 1 HDMI Type-A (male)
Supports 480p (640x480), 720p (1280x720), 1080i, 1080p (1920x1080) (60Hz) resolution
Output terminal: 1 D-Sub 15-pin (female)
Supports 640x480, 800x600, 1024x768, 1280x720, 1280x768, 1280x800, 1280x1024, 1360x768, 1600x1200, 1920x1080 (60Hz) resolution
Has a Micro USB power input for more stable transmission

*Under normal usage, it can convert signals without connecting; if your HDMI device does not provide sufficient power, you can connect a DC 5V1A~2A USB power adapter

Has a 3.5mm audio output jack for audio output (includes audio cable)
3.5mm audio cable length: 53CM
Micro USB power cable length: 53CM
Product dimensions: 45 (L) x 45 (W) x 15 (H) mm
Product HDMI cable length: 16.9CM
Complies with HDCP 1.0/1.1/1.2 specifications

Product Application

The HC107A can be connected to laptops, ultrabooks, tablets, or other devices with HDMI output ports, converting HDMI digital signals to VGA and stereo output, easily displaying audio and video on a screen or projector.

Aluminum alloy casing for better heat dissipation

Supports all HDMI conversions

(Micro HDMI / Mini HDMI / HDMI) to VGA

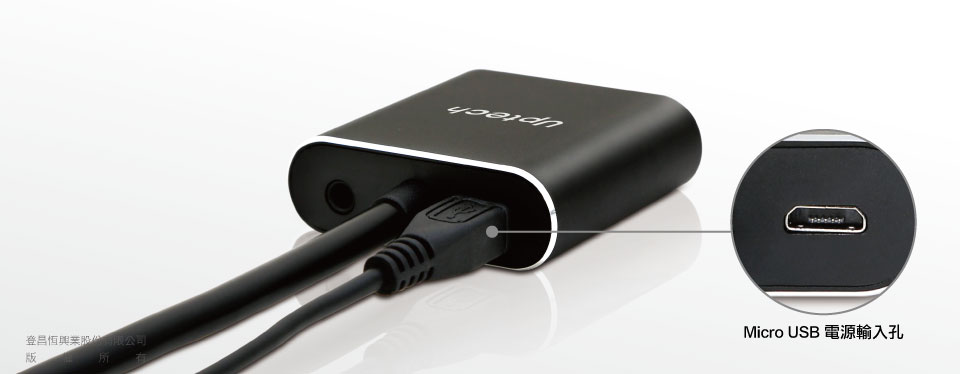

Micro USB power input for more stable transmission

※ Under normal usage, it may not need to be connected for signal conversion. If the HDMI device's power output is insufficient, you can connect a DC 5V1A~2A USB power adapter for power supply.

3.5mm audio output jack for audio output

Product List

HC107A x1

3.5mm audio cable x1 (53CM)

Micro USB (male) to USB Type A (male) power cable x1

Micro HDMI (male) to HDMI Type A (female) adapter x1

Mini HDMI (male) to HDMI Type A (female) adapter x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2017.12.15

Product Catalog

Details

0.5MB

PDF
