UPF320 Video to HDMI Video Converter

RCA converter

Convert Video or S-Video Signals (with Audio) to HDMI

What is a "Converter"?
A "converter" transforms different types of signals into one another. Common conversions include analog to digital or vice versa. Examples include:

●Video signal conversions such as AV to VGA, AV to D-Sub, VGA to AV, HDMI to VGA, HDMI to AV, VGA to HDMI, SDI to HDMI, HDMI to SDI, DisplayPort to HDMI, DP to HDMI, mini DP to HDMI, mini DP to VGA, mini DP to DVI.
●Video system conversions like NTSC to PAL and PAL to NTSC.
●Audio conversions like optical to analog, coaxial to optical, and optical to coaxial.

Product Features

Signal Conversion

High-Quality Output

Stereo Audio Conversion

Made in Taiwan

Product Introduction

File Download

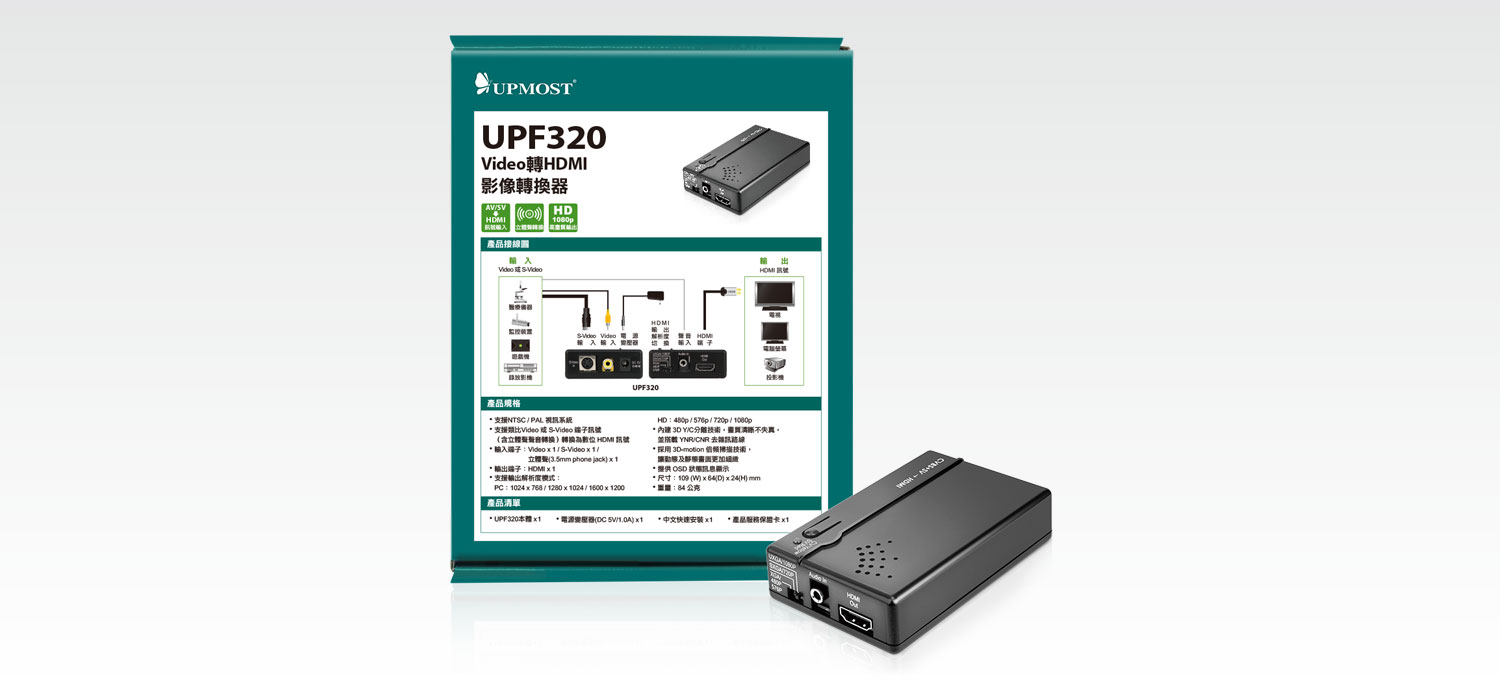

The UPF320 is an analog-to-digital signal converter that transforms Video or S-Video signals (including stereo audio) into HDMI output, using frame rate upscaling to enhance display quality on HDMI screens.

Product Specifications

Supports NTSC/PAL video systems
Converts analog Video or S-Video signals (including stereo audio) to digital HDMI
Input Ports: Video ×1 / S-Video ×1 / Stereo Audio (3.5mm phone jack) ×1
Output Port: HDMI ×1
Supported Output Resolutions:
PC: 1024×768 / 1280×1024 / 1600×1200
HD: 480p / 576p / 720p / 1080p
Built-in 3D Y/C separation technology for clear and distortion-free images
Equipped with YNR/CNR noise reduction circuits
Uses 3D-motion frame rate upscaling for enhanced dynamic and static images
Provides OSD (On-Screen Display) status information
Dimensions: 109 (W) × 64 (D) × 24 (H) mm
Weight: 84g

Product Application

Product List

UPF320 x1

Power Adapter (DC 5V/1.0A) ×1

Chinese quick installation guide x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2011.03.31

Manual

Details

0.3MB

PDF

2011.03.31

Product Catalog

Details

0.2MB

PDF
