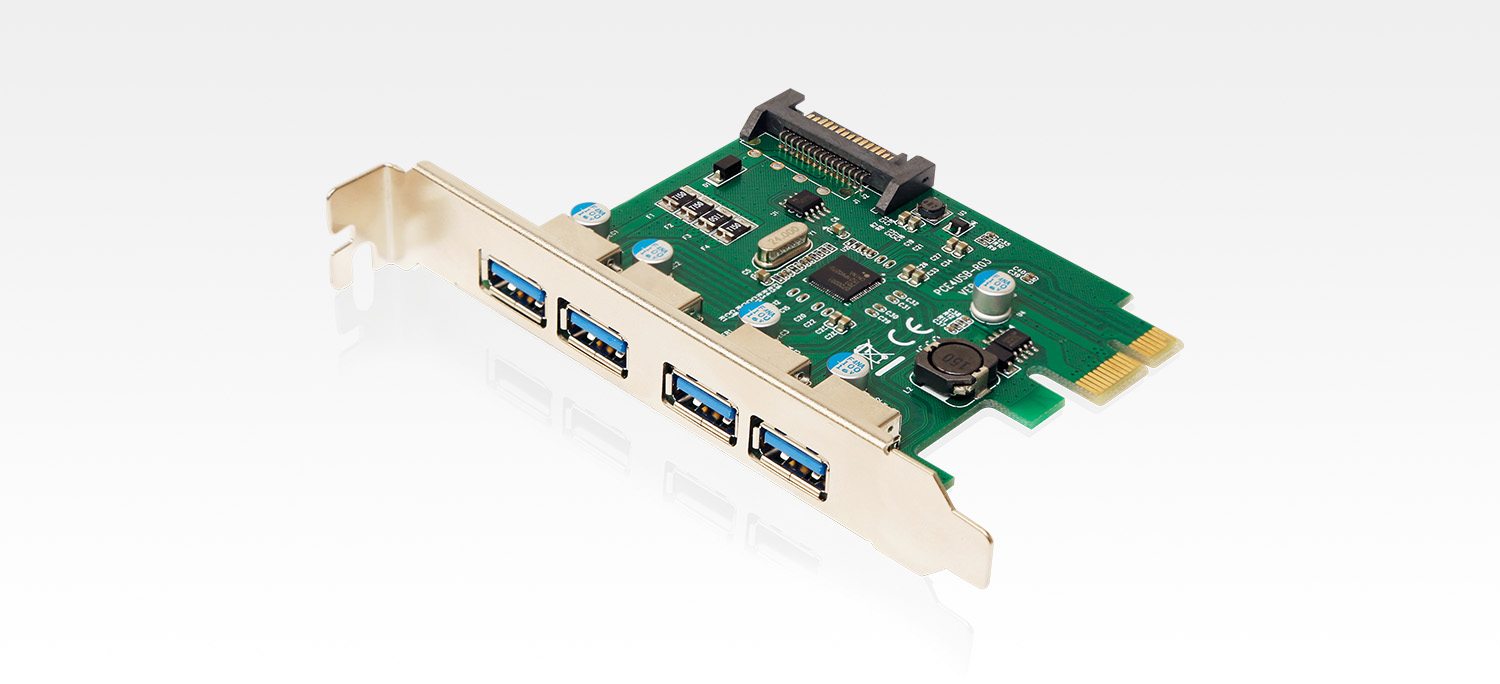

UTB254 USB 3.0 4-Port Expansion Card

USB

SATA 15-Pin Power Connector

Product Features

Renesas

Interface

Power Connector

Certifications

Horizontal Design

Product Introduction

File Download

Supports connectivity for a wide range of USB 3.0 devices

High-quality solid capacitors

Improves the stability and reliability of the UTB254 card in high-temperature environments inside the computer case, with faster charge and discharge response than standard electrolytic capacitors and greater resistance to extreme temperatures.

Product Specifications

Chipset: RENESAS
Interface: PCI Express Gen.II ×1 (backward compatible with PCI-e Gen.I)
Provides 4 external USB 3.0 ports
Horizontal USB port design, preventing interference with the computer case structure
Backward compatible with USB 2.0/1.1 devices
Power Supply: Uses SATA 15-Pin power connector
Equipped with solid capacitors, enhancing stability for both the card and connected USB devices
USB 3.0 data transfer rate up to 5Gbps
Compliant with Intel xHCI rev. 1.0 standard
Dimensions: 70 × 80 × 18mm
BSMI Certification Number: D33C64
RoHS Compliant

Product Application

System Requirements

Requires one available PCI-e slot
Operating System Compatibility:
Windows XP / Vista / 7 / 8 / 10 (32 & 64-bit)
Windows Server 2008 R2 (64-bit)
Linux

Product List

UTB254 Main Unit x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2016.12.27

Manual

Details

0.7MB

PDF

2016.11.09

Product Catalog

Details

0.3MB

PDF

2018.10.24

Driver

Details

Linux 2.6 Kernel

1.5MB

ZIP

for Linux

Linux 2.4 Kernel

2016.07.04

Driver

Details

Win Server 2008 32-bit

Win Server 2008 64-bit

Win XP 64-bit

Vista 32-bit

Vista 64-bit

Win 7 32-bit

Win 7 64-bit

Win 10 32-bit

Win 10 64-bit

0.1MB

ZIP

V3.0.23.0
