MB155SP-B 3.5-inch Hard Drive Enclosure

SATA internal

What is an "Internal Drive Enclosure"?
An "Internal Drive Enclosure" houses a SATA interface hard drive within a box that can be installed in a desktop computer case. The drive can be easily inserted and removed through a simple "extraction" mechanism. Specifications include SATA II hard drive enclosures / SATA II interface enclosures, SAS hard drive enclosures / SAS interface enclosures, and more.

Product Introduction

Specification Table

File Download

Product Features

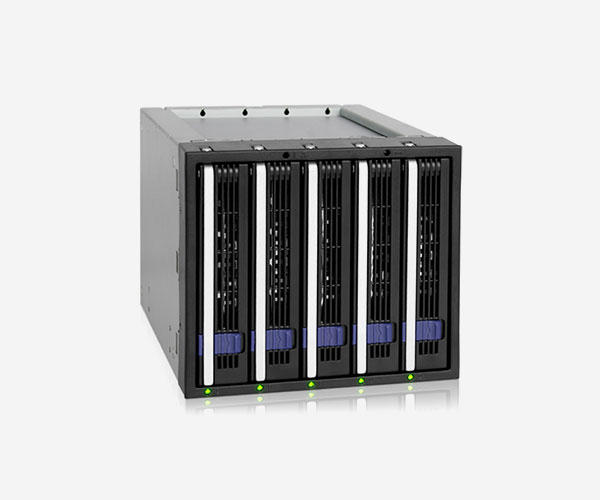

5-to-3 RAID Drive Module
Fits 5 x 3.5” SATA III hard drives in 3 x 5.25” bays and supports hot-swapping.
Equipped with a 92mm cooling fan and a metal body for excellent heat dissipation in any environment.
Space-saving design allows for multiple hard drives to be installed.
Removable EZ-Tray ensures drive safety and makes replacements and maintenance convenient.
Improved air direct-flow design eliminates unnecessary ventilation holes and incorporates large PCB ventilation slots.
Three-speed fan control (High/Low/Off: 100%, 60%, 0%).
Compatible with MB45X, MB559, and MB561 series trays for interchangeable use.
Includes a 3-year warranty.

產品應用

High-Efficiency Airflow

The all-metal body design ensures superior heat dissipation in any usage environment. The air direct-flow design has been restructured with optimized ventilation paths leading to the 92mm cooling fan, sealing unnecessary vents to improve cooling performance. Dual ventilation holes on the top and bottom further enhance airflow, while enlarged PCB ventilation slots improve air circulation. These features create a fully optimized cooling environment for hard drive heat dissipation.

Modular Cooling System

The 92mm fan design is compatible with most commercially available 2-pin and 3-pin power connector fans, ensuring flexibility and easy maintenance. The MB155SP-B includes three-speed fan control (High 100% / Low 60% / Off 0%), and fan speed can be adjusted to personal preferences by removing the jumper.

Hot-Swap System

The removable EZ-Tray design is interchangeable with MB45X, ICYBento MB559, and ICYCube MB561 series products, making replacement and maintenance highly convenient. This design allows users to reuse trays from the above series or compatible ICY DOCK 3.5-inch external products without compatibility concerns. The EZ-Tray supports most 3.5-inch SATA hard drives and offers easy installation/removal in two simple steps: press the release button and pull/push the tray handle. Built-in guide rails ensure secure installation every time and facilitate simple drive replacement in case of RAID failure or data transfer.

Space-Saving & Robust Quality

The power module connection uses a 15-pin SATA power connector to match the widely used power interface in current systems. It also incorporates a metal latch lock for enhanced system installation security.

Specification

Please drag left and right to view the specification table

Specifications

Product Model

Color

Supported Drives

Applicable Space

Main Interface

Power Interface

Transfer Rate

Connection Interface

Material

Cooling System

Power Indicator

Drive Activity Indicator

Dimensions (L x W x H)

Weight

Specifications

Content

Product Model

MB155SP-B

Color

Black

Supported Drives

5 x 3.5-inch SATA I / II / III

Applicable Space

3 x 5.25-inch bays (two optical drive spaces)

Main Interface

5 x 7 pin SATA

Power Interface

3 x 15pin SATA

Transfer Rate

6Gb/sec. (depending on drive performance)

Connection Interface

Direct SATA connection

Material

Full aluminum alloy with plasticized panel

Cooling System

Replaceable 92 x 92 x 25mm fan, compatible with most 2-pin/3-pin 92mm fans; aluminum alloy cooling with 3-speed fan control (High/Low/Off)

Power Indicator

Green light (power on)

Drive Activity Indicator

Flashing amber LED

Dimensions (L x W x H)

200.4 ⅹ 146.4 ⅹ125mm

Weight

1261g

File Download

Date

Type

Operating System

Description

File Download

2017.05.04

Product Catalog

Details

0.7MB

PDF
