ESE A8A-E12U

AI GPU Server for Advanced Training and Large-Scale Inference

A 7U server with eight AMD Instinct™ MI325X GPUs and dual AMD EPYC™ 9005 processors, built for large AI models and HPC workloads. Features up to 11 PCIe® slots, 24 DIMM slots, 10 NVMe drives, and dual 10Gb LAN.

Product Introduction

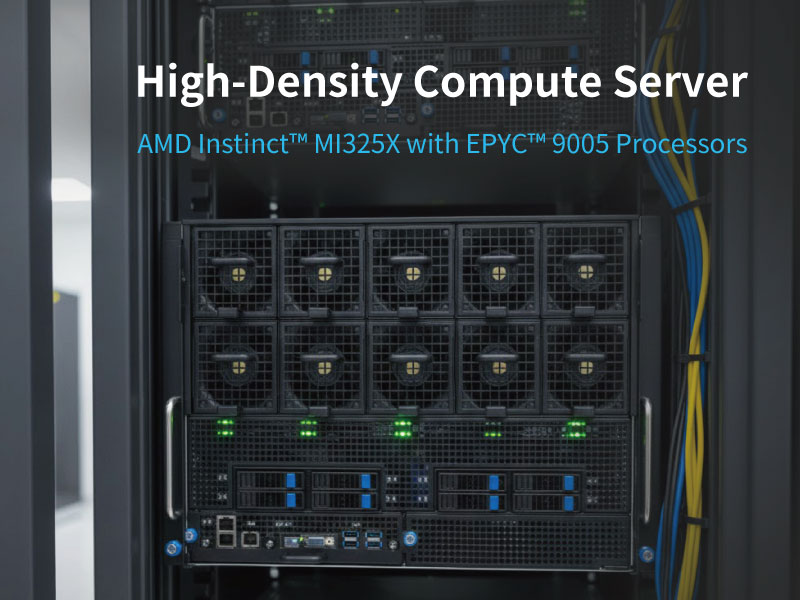

High-Density Compute Server

The ASUS ESC A8A-E12U is a 7U dual-socket GPU server powered by the latest AMD EPYC™ 9005 processors and AMD Instinct™ MI325X accelerators. With high memory bandwidth and optimized power efficiency, it is built for advanced AI training and large-scale model inference.

Enterprise-Grade Power

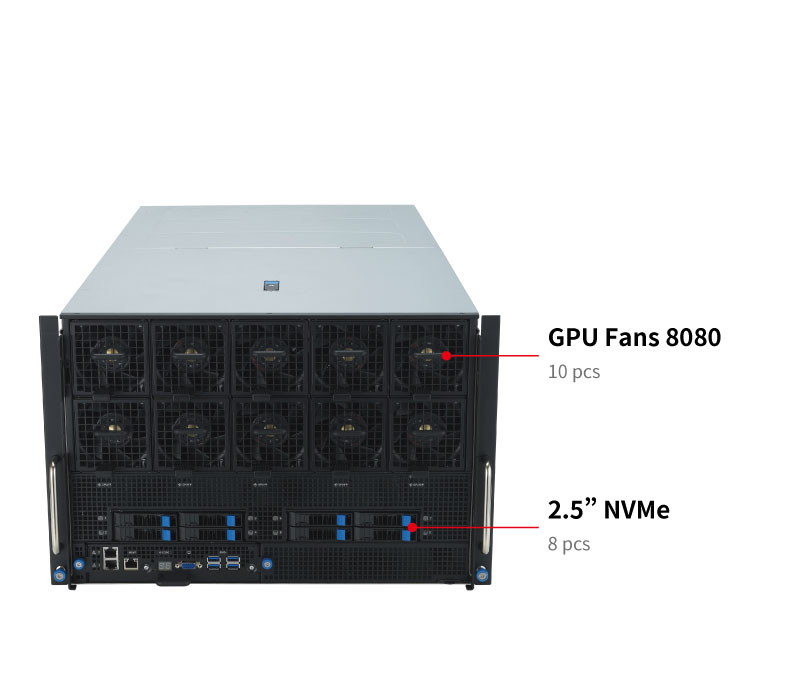

Fornt

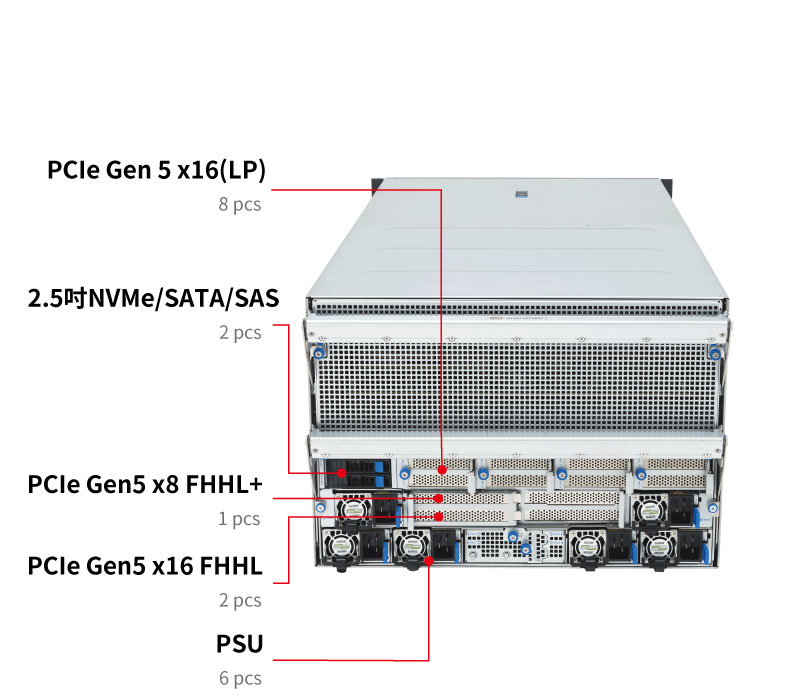

Back

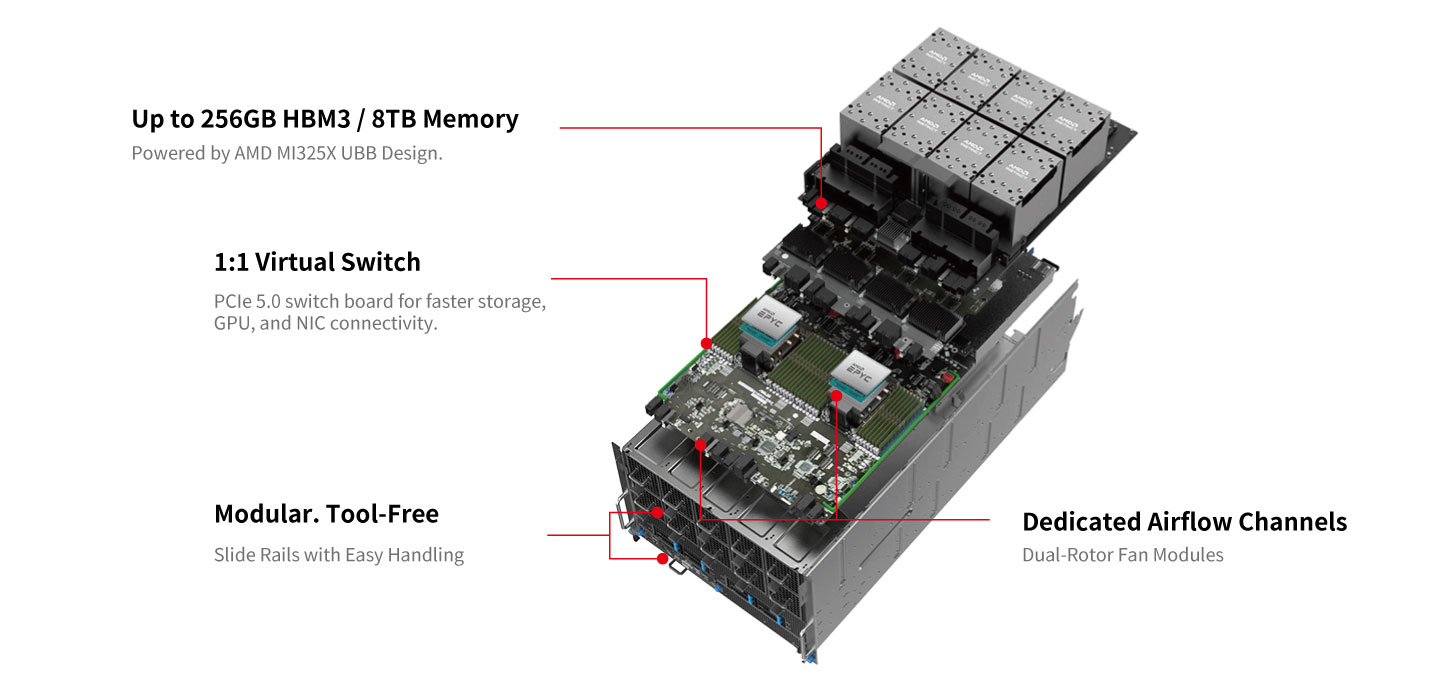

Inside

Air Cooling Solution

Compact 7U form factor for maximum efficiency

ESC A8A-E12U delivers high-end GPU performance in the most compact 7U air-cooled form factor. It combines optimized thermal design with independent CPUand GPU airflow tunnels to ensure superior heat dissipation, and enhance energy efficiency and power savings.

Serviceability

Tool-free thumbscrews

Quick Setup

Tool-Free PCIe Card Removal and Fast Installation

Improved IT operations efficiency

IT infrastructure-management software

Streamline IT operations via a single dashboard

ASUS Control Center (ACC) is remote IT-management software application designed for monitoring hardware and software IT assets and inventory status, and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with hotfix updates — allowing easier server management for any IT infrastructure.

BMC

Remote server management

ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

Specifications

Processor / System Bus

2 x AMD EPYC™ 9005/9004 Series Processors  (Up to TDP 400W)
Memory Total Slots:
24x DDR5 DIMM slots, up to 6400MHz(1DPC) (12-channel per CPU, 12 DIMM per CPU)
Capacity:
Maximum up to 3TB
Memory Type:
DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB
*Refer to Asus server AVL for the latest update
Expansion Slots Up to 11 PCIe slots
[89104 PCIe Switch directly]
-8 x PCIe Gen5 x16 (LP, HL) – GPU group
[89048 PCIe Switch directly]
-1 x PCIe Gen5 x16 (FH, HL) – CPU 1 extension
-1x PCIe Gen5 x8 (FH, HL) – CPU 1 extension
[CPU directly]
-1 x PCIe Gen5x16 (FH, HL) (CPU2)
Networking 2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
1 x Management Port
Multi-GPU Support Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports 4 x USB3.2 Gen1 ports,
1 x VGA port
2 x 10Gb RJ45 LAN module (Intel-x710 Based)
1 x Mgmt LAN
1 x locate button
1 x power button
Rear I/O Ports 1 x locate button
1 x power button
Switch/LED Front :
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x Q-Code/Port 80 LED
Rear :
1 x Location LED
1 x Power Button/LED
OS Support Please find the latest OS support from https://servers.asus.com/support/os
Management Tools ASUS Control Center
ASUS ASMB11-iKVM (on-board)
Certification and Safety BSMI, CB, CE, FCC
Dimensions 885mm x 447mm x 306.65mm
Form Factor 7U
Weight Net Weight: 108 Kg
Gross Weight: 142.4 Kg
Power Supply 5+1 Redundant 80 PLUS 3000W Titanium PSU
Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)
