BE300C Analog Signal Extender

wired extension

Product Features

Transmission Distance

Cable Length

Product Introduction

File Download

Product Specifications

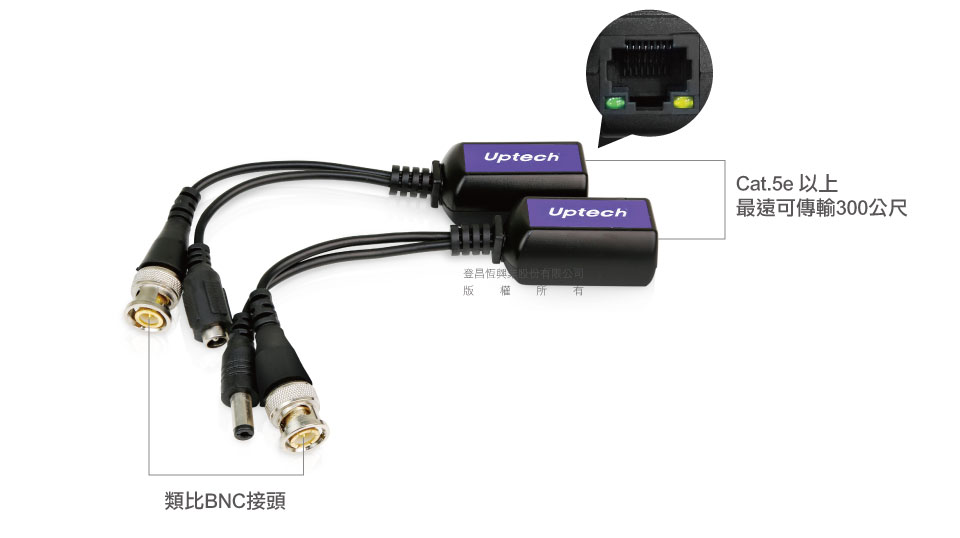

Using a Cat.5e / Cat.6 UTP or higher grade network cable to connect the transmitter and receiver, analog signals can be extended up to 300 meters.
The transmitter and receiver use BNC male connectors.
Supports AHD, CVI, TVI, NTSC, PAL, SECAM, and other signal formats.
Power and video combined design for easy installation.
Transmission distance

Signal Format	Resolution/Pixels	Distance
CVI	720P	250 meters
	1080P	120 meters
	3/4/5/8 million	120 meters
AHD	720P	250 meters
	1080P	120 meters
	3/4/5/8 million	120 meters
TVI	720P	250 meters
	1080P	120 meters
	3/4/5/8 million	120 meters
CVBS	960H	300 meters

Power input/output: DC 12V.
Dimensions (excluding cable): 25 x 21 x 40 (mm).
BNC/DC cable length: 125 (mm).
Material: ABS plastic.
Operating temperature: -10~70°C.
Storage temperature: -30~70°C.

Product Application

Product List

BE300C x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.
