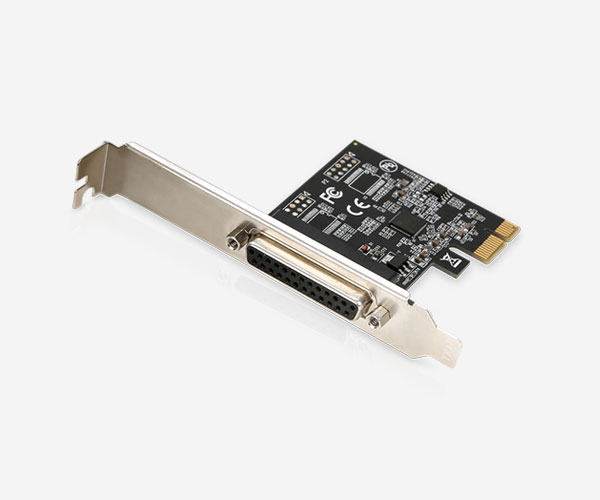

AX990-1P Parallel Expansion Card

Parallel

Product Features

High-Speed Chip

Interface

Low Profile Compatible

Support

Parallel x1

Product Introduction

File Download

Product Specifications

Chipset	ASIX
Bus Interface	PCE Express 2.0 Gen 1 x1
Interface	Parallel Port
Interface	IEEE 1284 Parallel Port
Speed	1 MBps
Supported Modes	SPP / EPP / ECP / PS2
Operating Temperature	0°C to 50°C
Storage Temperature	0°C to 80°C
BSMI Certification Number	D33C64 (RoHS Compliant)

Product Application

System Requirements

Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11
Windows Server 2003 / 2008 R2 / 2012
Linux

Product List

AX990-1P x1

Parallel Low Profile x1 (Optional)

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2022.08.23

Driver

Details

Win 11 64-bit

0.5MB

ZIP

Driver for Windows 11 64bit

v1.22.3.0

2020.03.17

Driver

Details

Win 8 32-bit

Win 8 64-bit

Win 8.1 32-bit

Win 8.1 64-bit

Win 10 32-bit

Win 10 64-bit

2.7MB

ZIP

Driver for Windows 10、8.1、8

v1.18.5.0

2020.03.17

Driver

Details

Win XP SP2

Win XP 64-bit

Vista 32-bit

Vista 64-bit

Win 7 32-bit

Win 7 64-bit

0.5MB

ZIP

Driver for Windows XP、Vista、7

v1.12.3.0

2020.01.15

Driver

Details

Win 2000 SP4

Win XP SP2

Win XP 64-bit

Vista 32-bit

Vista 64-bit

Win 7 32-bit

Win 7 64-bit

Win 8 32-bit

Win 8 64-bit

Win 8.1 32-bit

Win 8.1 64-bit

Win 10 32-bit

Win 10 64-bit

4.7MB

ZIP

First Version Driver
