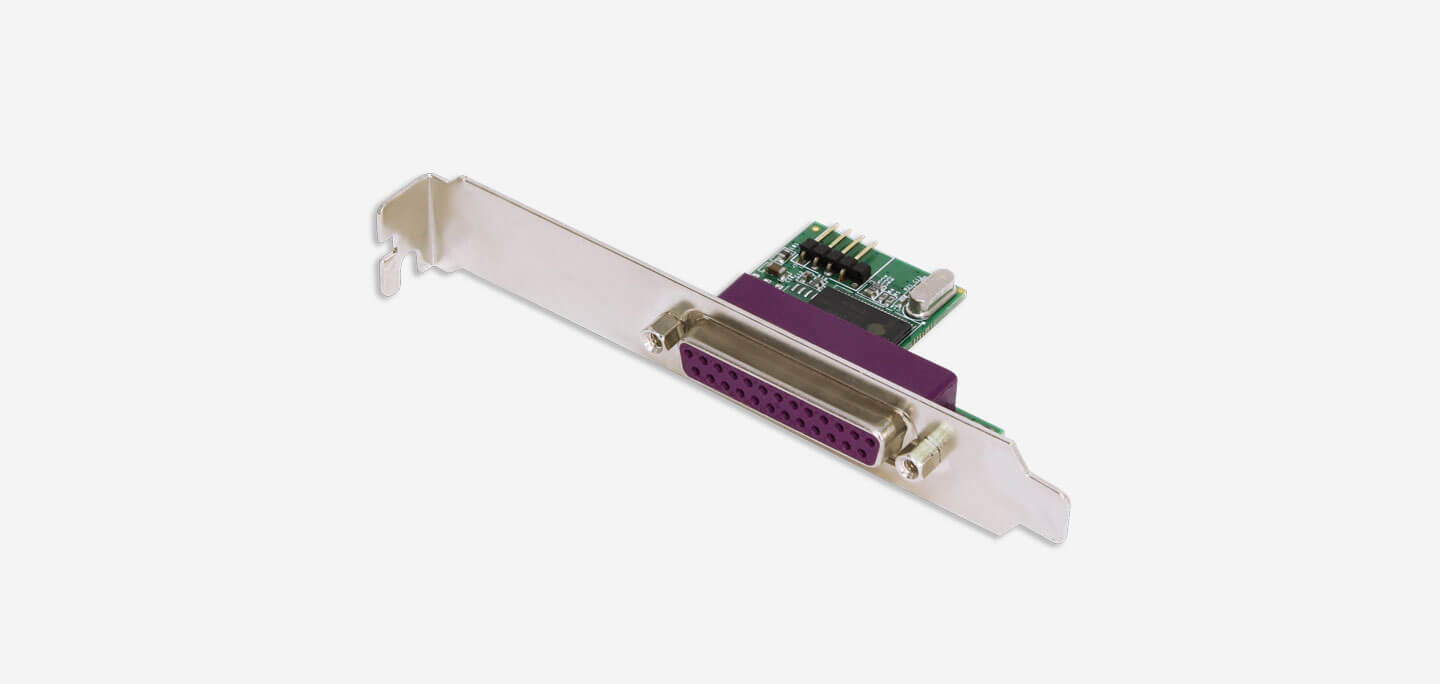

UTN501 USB to Parallel Printer Adapter

Parallel

Uses Prolific PL2305 chip

Product Features

Parallel port

Chip

Transmission rate

Uses motherboard header conversion

No driver installation required

Product Introduction

File Download

Product Specifications

Uses Prolific PL2305 chip.
Provides 1 Parallel port expansion.

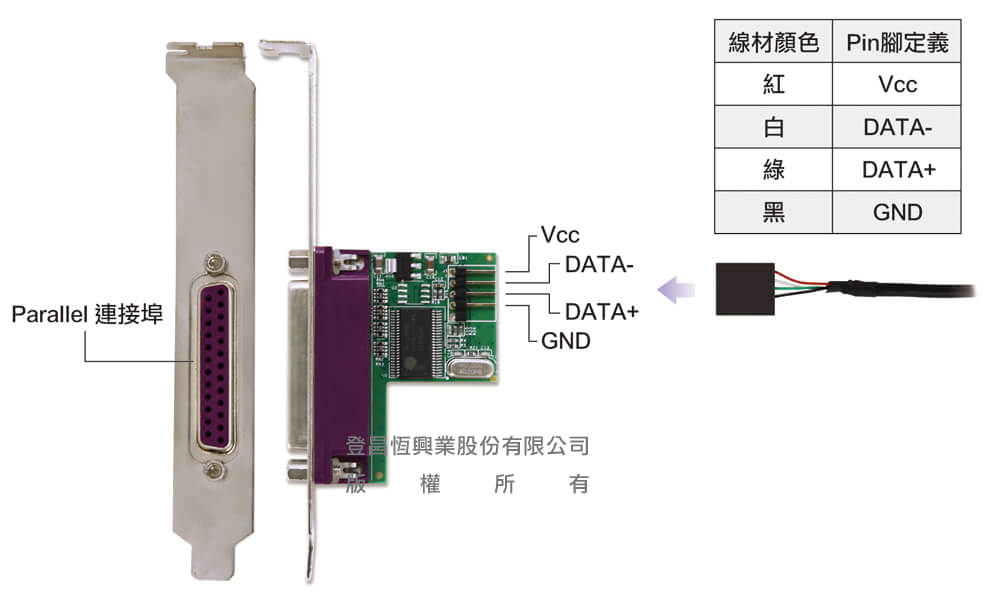

Uses a 5-pin USB 2.0 internal header to connect to the motherboard.
Supports a data transfer rate of 1.5 Mbps.
Solves the issue of new computers lacking traditional printer interfaces.
No driver installation required.
Powered via USB, no external power adapter needed.
FCC, CE certified, and complies with ROHS standards.

Product Application

System Requirements

Operating System: Windows 2000 / XP / 2003 / Vista / 7
A usable 5-pin USB header on the motherboard.

Product List

UTN501 x 1

USB2.0 5-pin Cable x 1

Chinese quick installation guide x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2012.03.20

Manual

Details

0.3MB

PDF

2012.03.20

Product Catalog

Details

0.4MB

PDF
