UT404 4-Port RS-232擴充卡

RS232/422/485

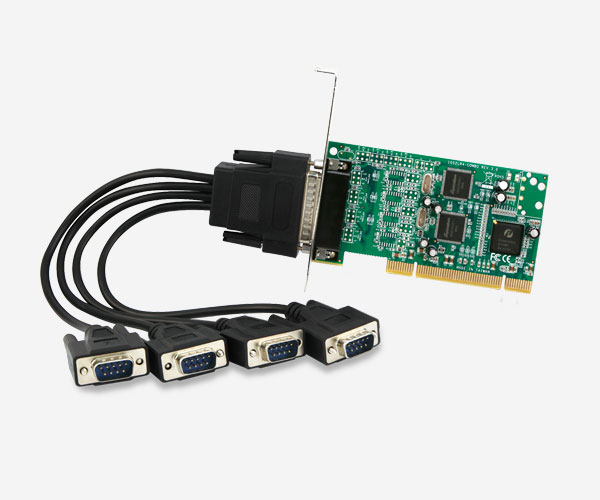

UT404 4-Port RS-232 Expansion Card

Transmission Speed: Up to 460Kbps

Product Features

Transmission Speed

RS-232

Ports

Interface

Windows

Made in Taiwan

Product Introduction

File Download

Product Specifications

Chipset: Systembase SB16C1052PCI
32-bit PCI Interface, Plug and Play
Provides 4 RS-232 standard serial ports (DB-9 male)
Transmission speed supports up to 460Kbps
Supports RS232 mode and hardware/software flow control
FCC, CE certified, ROHS compliant
Made in Taiwan
Product Dimensions: 125 x 120 x 20 mm

Product Application

System Requirements

One available PCI slot
Operating System:
Windows 7 32 / 64-bit / 2000 / XP / Vista / Server 2003 / 2008 32/64-bit
Linux kernel 2.4/2.6

Product List

UT404 x1

Signal conversion cable x1

Chinese quick installation guide x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2010.10.14

Manual

Details

4.0MB

PDF

2010.09.06

Product Catalog

Details

0.4MB

PDF

2016.07.27

Driver

Details

Win 2000 SP4

Win Server 2003 32-bit

Win Server 2003 64-bit

Win Server 2008 32-bit

Win Server 2008 64-bit

Win XP SP2

Vista 32-bit

Vista 64-bit

Win 7 32-bit

Win 7 64-bit

Win 8 32-bit

Win 8 64-bit

2.6MB

ZIP

For Win2000, XP, 2003, Vista, 2008, 7.8 driver

V1.717.01.002

2012.08.09

Driver

Details

Win 2000 SP4

Win Server 2003 32-bit

Win Server 2003 64-bit

Win Server 2008 32-bit

Win Server 2008 64-bit

Win XP SP2

Win XP 64-bit

Vista 32-bit

Vista 64-bit

Win 7 32-bit

Win 7 64-bit

Win 10 32-bit

Win 10 64-bit

0.6MB

ZIP

For Win2000, XP, 2003, Vista, 2008, 7 driver

V1.6900.01.002

2010.10.13

Driver

Details

Win Server 2003 32-bit

Win Server 2003 64-bit

Win XP SP2

Win XP 64-bit

Vista 32-bit

Vista 64-bit

Win 7 32-bit

Win 7 64-bit

0.8MB

ZIP

V5.0.7
