UTB312 2-Port RS-232 Expansion Card

RS232/422/485

Uses PCI-e x1 bus interface, supports Plug and Play

Product Features

MOSCHIP

2-Port

Bus Interface

Standard Serial Port

Maximum Transmission Rate

Product Introduction

File Download

Product Specifications

Uses MOSCHIP MCS9900CV-AA Chipset
Provides 2 RS-232 DB 9-Pin standard serial ports
PCI Express x1 bus interface
Supports hardware/software flow control
Compatible with PCI Express specification Rev. 1.0a
32-bit bus, supports PCI 2.1 specification
Uses I/O high-speed controller, transmission rate up to 115.2Kbps
Built-in 256-byte FIFO bidirectional data transfer
Dimensions: 12(L) x 7.8(W) cm
BSMI Certification: D33C64
Complies with RoHS certification
Net weight: 45g (±1)
Material: PCB board, metal/plastic components

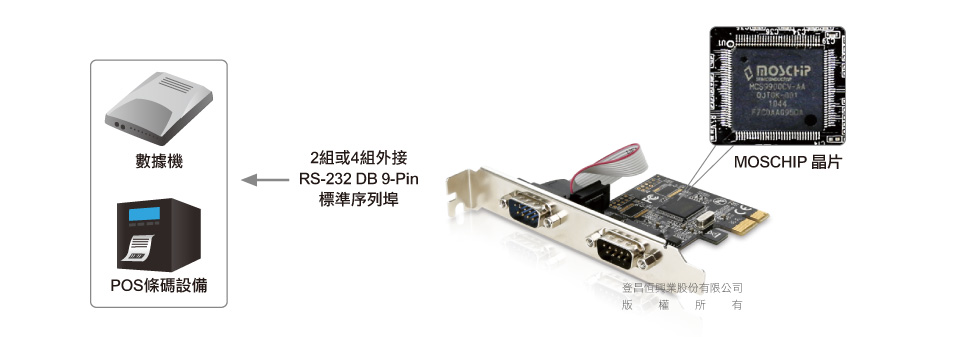

Product Application

Product List

UTB312 ×1

Chinese quick installation guide x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2019.07.15

Manual

Details

11.8MB

PDF

2017.01.16

Product Catalog

Details

0.6MB

PDF

2017.01.25

Driver

Details

Linux 2.4 Kernel

Linux 2.6 Kernel

Linux 3.0 Kernel

DOS

Win XP SP2

Win 7 32-bit

Win 7 64-bit

Win 8 32-bit

Win 8 64-bit

Win 8.1 32-bit

Win 8.1 64-bit

Win 10 32-bit

Win 10 64-bit

Win 11 64-bit

2.2MB

ZIP

v3.0.0.0
