Using AV over IP to plan audiovisual presentations, integrating four devices to provide the following eight major functions: screen preview, distance extension, matrix switching, screen stitching, screen splitting, keyboard and mouse control, venue management, and environmental control support. This setup solution offers high scalability, capable of meeting various application scenarios based on different venues and requirements.

The AVIP-P5101TR-B1C features a dual-function design, allowing it to serve as either an encoder (TX) or a decoder (RX). This enhances the flexibility and convenience of system planning and maintenance. Such a design simplifies management, enabling faster troubleshooting and maintenance by reducing the complexity of detection and replacement with a single device. These advantages significantly boost the system's adaptability and reliability, catering to diverse application needs.

Supports resolutions up to 4096x2160 @60Hz 4:4:4, delivering finer image quality compared to 1920x1080 @60Hz. This ensures exceptional visual performance for multi-screen video wall displays.

By using network cables to connect the encoder (TX) to the network switch, and then to the decoder (RX), a transmission distance of up to 200 meters can be achieved.

Through the screen stitching feature, you can combine a set of signal images across multiple screens like a puzzle, enlarging the display onto a video wall for a comprehensive big-screen experience.

It allows multiple signal sources to be displayed simultaneously on one screen, supporting formats like PIP (Picture-in-Picture), PoP (Picture-out-Picture), PBP (Picture-by-Picture), and Quad. This feature facilitates easier monitoring and management, enhancing operational efficiency.

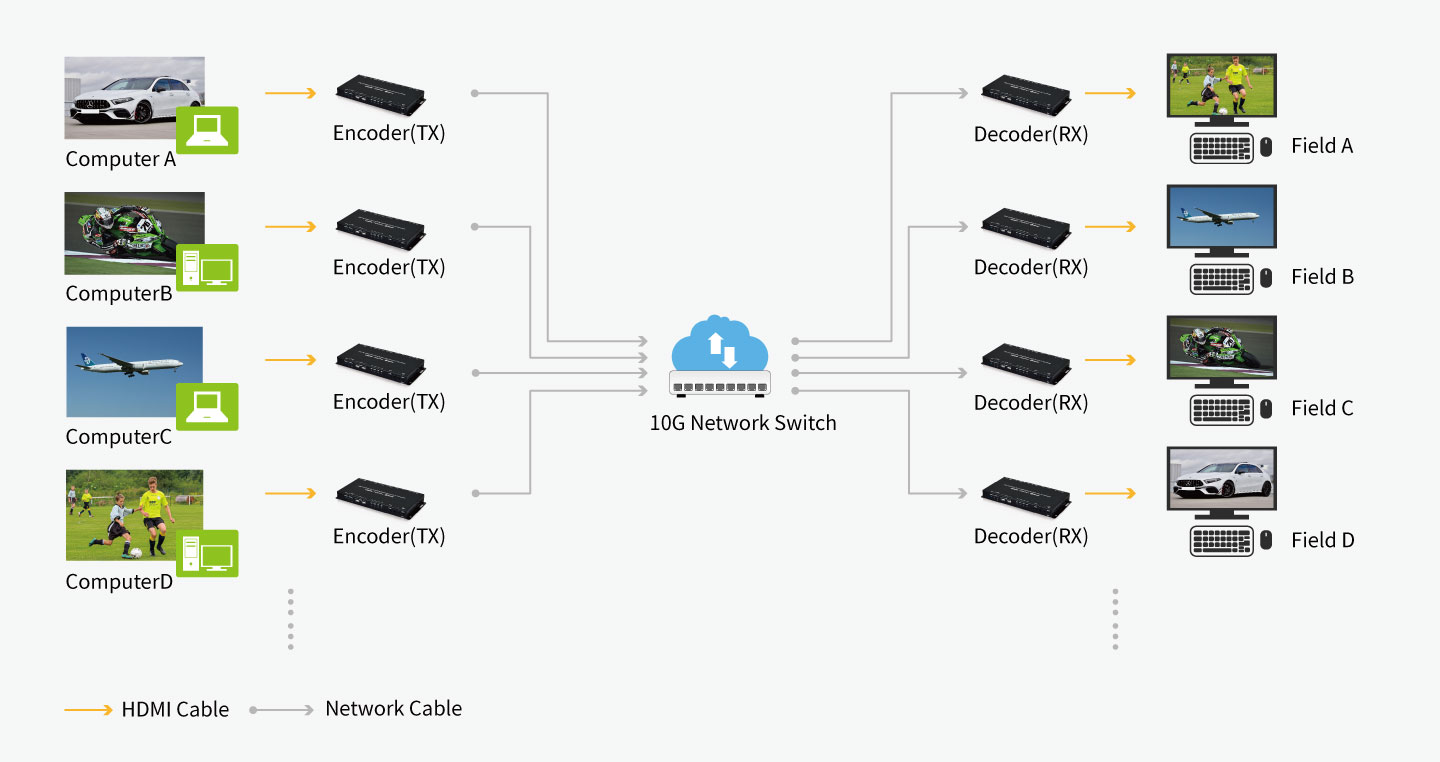

It allows transmitting the screens of multiple computers to different locations and remotely controlling them using a keyboard and mouse, without the need to operate directly on the computers, enhancing convenience and flexibility.

In the same local area network, users can connect to the device's management webpage (WebGUI) using a computer, smartphone, or tablet for configuration, eliminating the need for on-site operations and making maintenance and management more convenient.

Through PoE (Power over Ethernet) technology, there is no need for a power adapter. When there is no power outlet in the installation environment, simply connect the RJ45 network cable to the network switch, and it will supply power to the device while transmitting the signal simultaneously.

• Supports a full range of formats, including 4K60 RGB/4:4:4, HDR10, 3D, and broadcast-grade 4K60 10-bit 4:2:2.
• Supports standard HID USB functionality, allowing easy connection of keyboards and mice.
• Zero-latency signal transmission.
• With upscaling functionality, it can upscale the signal to 4K resolution.
• Supports bezel correction function, allowing adjustment of gap spacing when stitching multiple screens for video wall setups.
• Supports multi-channel PCM stereo audio.
• Supports color space and frame rate conversion.
• Ultra-low compression technology, providing almost lossless audio and video quality.
• Point-to-point maximum distance up to 100 meters.
• Dual-purpose design, can function as either an encoder (TX) or decoder (RX).
• Supports 10/12-bit HDR signal pass-through.
• Supports analog stereo audio extension, embedding, and extraction (embedding and extraction require optional control center device or control software).
• Signal transmission via 10-Gigabit port with compatible XFI (IEEE 802.3ae) 10-Gigabit Ethernet switch.
• Basic configuration can be done through the front panel buttons.
• Supports expansion via external control center device or control software.
• Compatible with older models like CH-V502TR and COH-TR7.

• Transceiver ×1
• Power Adapter (DC 12V/3A) ×1
• Power Cord ×1
• User Manual ×1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.
