C110 Network Cable VGA Audio-Video Extender

wired extension

Product Features

Resolution

Transmission Distance

Signal Adjustment Knob

Screw Lock Hole

Power Indicator Light

Product Introduction

File Download

Product Specifications

Fully external hardware design, plug-and-play, no software or driver installation required.
Uses a single Cat.5e UTP or higher network cable to connect the transmitter and receiver, extending VGA + 3.5mm audio signals up to 100 meters.
Built-in EDID, supporting a maximum resolution of 1920 x 1440.
The receiver includes a signal gain adjustment knob to correct distortion and attenuation caused by distance.
Equipped with screw lock holes for easy installation and secure mounting.
Note: The specification and quality of the network cable affect transmission bandwidth and distance. It is recommended to use interference-resistant Cat.5e or higher cables (solid-core twisted pairs with aluminum foil shielding) for optimal performance.

Item	Transmitter	Receiver
Interface Ports	VGA Input (Female) x1 3.5mm Audio Input (Female) x1 RJ45 (Female) x1 LED Indicator x1	VGA Output (Female) x1 3.5mm Audio Output (Female) x1 RJ45 (Female) x1 LED Indicator x1 Gain Adjustment Knob x1
Power Supply	DC 12V

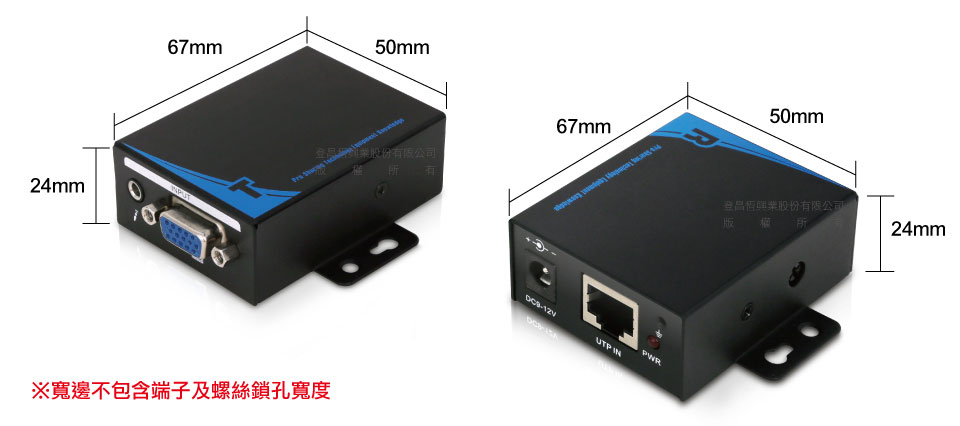

Dimensions	70 x 72 x 24 mm (*Including terminals and screw lock holes)
Net Weight	116 g (±1)	119 g (±1)
Material	Metal

Product Appearance

Product Application

Product List

C110T Transmitter Main Unit x1

C110R Receiver Main Unit x1

Power Adapter x2 (DC 12V)

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.
