CH-2527 T&RXV 4K UHD HDMI W/HDR Over HDBaseT Transmitter (PD) & Receiver (PSE)

wired extension

Product Features

Supports HDBaseT specification

Feature Support

HDMI Transmission Bandwidth

3D Video Support

Audio/Video Interface (Requires Adapter)

Made in Taiwan

Product Introduction

File Download

What is HDBaseT

HDBaseT brings revolutionary changes to the audiovisual market. Compared to existing solutions, HDBaseT offers richer features, longer transmission distances, and better performance. At its core, HDBaseT uses a single 100-meter/328-foot standard network cable to transmit uncompressed ultra-high-definition audio and video, Ethernet, control signals, USB 2.0, and up to 100W of power, known as 5Play™ technology.

AVLC: This switch allows users to select the mode
HQ (High Quality): Uses minimal compression and provides the highest visual quality. In this mode, AVLC compresses any signal exceeding 9Gbps
STD (Standard): Reduces additional signals, further lowering bandwidth requirements at the cost of some visual fidelity to improve transmission reliability. In this mode, AVLC compresses any signal exceeding 7.5Gbps
ISP: This switch is for factory use only
UPDATE Switch: This switch is for factory use only
RS-232 IN: Connects to a PC, laptop, or other serial control device
LAN Port: Connects to an Ethernet device or local network
SYNC LED: Lights up when an input source is detected
HD/STD LED: Lights up when AVLC is enabled
Green LED: Indicates AVLC is in HQ mode
Red LED: Indicates AVLC is in STD mode
POWER LED: Lights up when the device is powered on and receiving power
LINK LED: Stays solid when connected and blinks during transmission
※ If the receiver is connected but no valid mode is running, the LED will blink in an irregular pattern, indicating an error
IR1 BLASTER: Connects to the IR Blaster to transmit IR signals to devices within direct line of sight
IR2 EXTENDER: Connects to the provided IR Extender for IR signal reception
CAT5e/6/7 OUT: Used for transmitting all data signals
※ Compatible with HDBaseT receiver connection
HDMI IN: Connects to an HDMI source device, such as a media player, gaming console, or set-top box
※ Supports DVI sources using an HDMI-to-DVI adapter

ISP: This switch is for factory use only
UPDATE Switch: This switch is for factory use only
RS-232 OUT: Connects to a serial-controllable device to extend RS-232 signals
LAN: Connects to an Ethernet device or local network
SYNC LED: Lights up when an input source is detected
HD/STD LED: Lights up when AVLC is enabled
Green LED: Indicates AVLC is in HQ mode
Red LED: Indicates AVLC is in STD mode
POWER LED: Lights up when the device is powered on and receiving power
LINK LED: Stays solid when connected and blinks during transmission
※ If the receiver is connected but no valid mode is running, the LED will blink in an irregular pattern, indicating an error
DC 48V: Insert a 48V DC power adapter into this port and connect it to an AC power outlet
IR2 BLASTER: Connects to the IR Blaster to transmit IR signals to devices within direct line of sight
IR1 EXTENDER: Connects to the provided IR Extender for IR signal reception
CAT5e/6/7 IN: Used for transmitting all data signals
※ Compatible with HDBaseT transmitter connection
HDMI OUT: Connects to an HDMI TV, monitor, or amplifier for video and audio output

Network cable levels and supported resolutions are as follows

Product Specifications

HDMI supports 3D video and 4K Ultra HD
Compatible with DVI 1.0 video interface, requires HDMI-DVI adapter
Compliant with HDCP 1.x & 2.2 high-bandwidth digital content protection mechanism
Supports HDBaseT standard
Supports high-definition resolutions up to 4096×2160p @ 50/60Hz (YUV 4:2:0, 8-bit)
Supports CEC functionality
Transmits video, audio, and data simultaneously over Cat.5e/6/7 cables up to 100 meters
Supports 48V PoH (Power over HDBaseT) power supply from receiver to transmitter
※ HDBaseT functions supported: Transmits high-definition video and audio, 100-meter Ethernet, USB 2.0, 48V PoH, and control (bidirectional IR / RS-232 pass-through)

4K Ultra HD

Versatile Application Scenarios

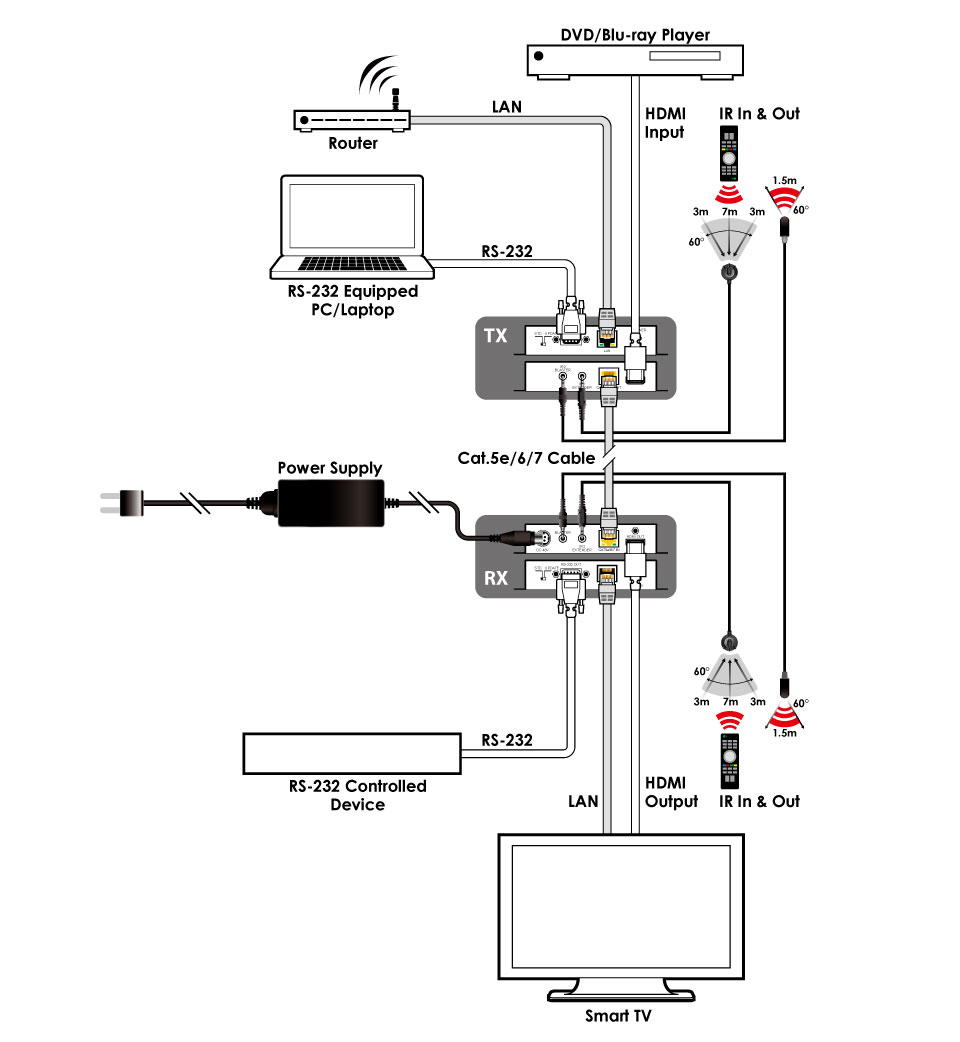

Product wiring diagram

Product List

CH-2527 T&RXV x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.
