CH-331H-TX & CH-331H-RX

wired extension

Flexible and expandable digital signage system.

Product Features

Resolution

Long-distance transmission

Screen splicing

Made in Taiwan

Product Introduction

File Download

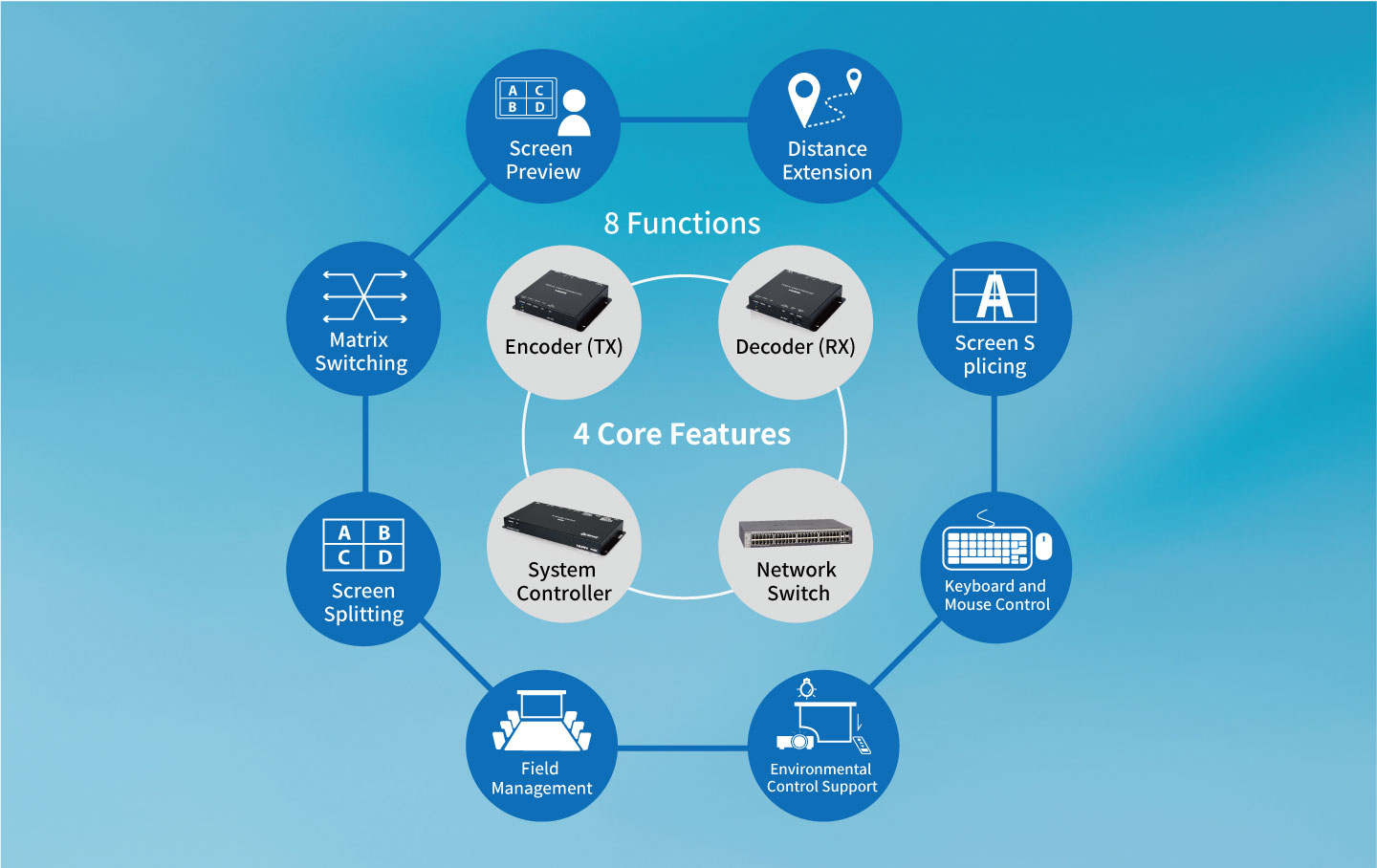

Four cores, eight functions, creating unlimited possibilities for audiovisual presentations.

Using AV over IP to plan audiovisual presentations, integrating four devices to provide the following eight major functions: screen preview, distance extension, matrix switching, screen stitching, screen splitting, keyboard and mouse control, venue management, and environmental control support. This setup solution offers high scalability, capable of meeting various application scenarios based on different venues and requirements.

WXUGA resolution offers detailed and high-quality visuals.

Supports up to 1920x1200@60Hz (WXUGA), providing excellent visual effects for multi-screen video wall displays.

Supports up to 200 meters of long-distance transmission.

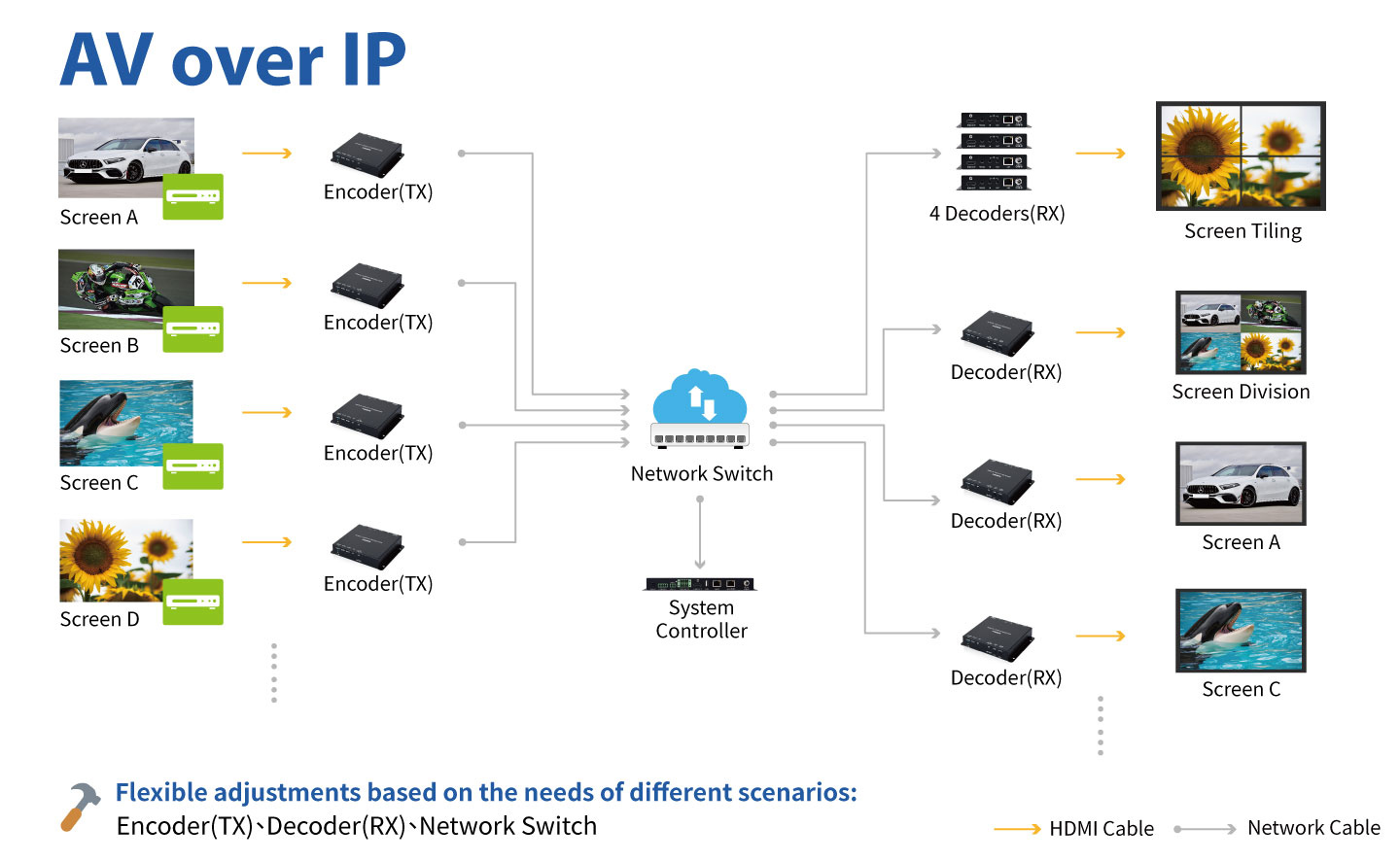

By using network cables to connect the encoder (TX) to the network switch, and then to the decoder (RX), a transmission distance of up to 200 meters can be achieved.

Screen stitching: Multi-screen single display

Through the screen stitching feature, you can combine a set of signal images across multiple screens like a puzzle, enlarging the display onto a video wall for a comprehensive big-screen experience.

Graphical web management for easy maintenance of on-site equipment.

In the same local area network, users can connect to the device's management webpage (WebGUI) using a computer, smartphone, or tablet for configuration, eliminating the need for on-site operations and making maintenance and management more convenient.

Product Applications

Application Examples

Sports Bars

Medical Surgery Training

Factory Production Line Monitoring Center

Lecture Halls

CH-331H-TX Key Specifications

Transmits video, audio, and control signals via TCP/IP protocol, supporting both Unicast (point-to-point) and Multicast (point-to-multipoint or multipoint-to-multipoint) modes.
Supports multi-screen video walls with options for 180° and 270° rotation.
HDMI input supports resolutions up to 1080p@60Hz/WUXGA.
Supports audio pass-through in formats including LPCM 2.0/5.1/7.1, bitstream, and HD bitstream.
Supports infrared and RS-232 extension.
Control via WebGUI, Telnet, and front panel controls.

Interface
Input Ports	1×HDMI (Type A)
Output Ports	1×GbE LAN（RJ-45）
Control I/O	1×IR extension (3.5mm)
	1×IR transmit (3.5mm)
	1×RS232（3.5mm）

HDMI Specification	HDMI 1.4（DVI 1.0）
HDCP Specification	HDCP 1.4
Input Signal Type	1920x1080p@60 12bit RGB
Maximum Input Resolution	HDMI	1920×1080p@60 1920×1200p@60RB
Maximum Output Resolution	LAN (Streaming)	1920×1080p@60 1920×1200p@60RB

Audio
Form	HDMI	LPCM (8 channels), HD Bitstream

Enclosure
Chassis material	Metal (Steel)
Color	Black
Dimensions	128mm×25mm×116mm
Weight	364g

Power
Power Supply	DC 5V/2.6A (Locking)
Power Consumption	5.17W

CH-331H-RX Key Specifications

Transmits video, audio, and control signals via TCP/IP protocol, supporting both unicast (point-to-point) and multicast (point-to-multiple or multiple-to-multiple) modes.
Supports multi-screen video wall with options for 180° and 270° rotation.
Video output can be scaled to the selected resolution, with an option to not scale.
HDMI input supports up to 1080p@60Hz/WUXGA resolution.
Supports audio transmission, including formats like LPCM 2.0/5.1/7.1, bitstream, and HD bitstream.
Supports infrared and RS-232 extension.
Features informational OSD (when the device is not connected), and can be controlled via front-panel buttons, WebGUI, Telnet, or AV over IP main controller.

Interface
Input Ports	1×HDMI
Output Ports	1×GbE LAN（RJ-45）
Control I/O	1×IR extension (3.5mm)
	1×IR transmit (3.5mm)
	1×RS232（3.5mm）

HDMI Specification	HDMI 1.4（DVI 1.0）
HDCP Specification	HDCP 1.4
Input Signal Type	1920x1080p@60 12bit RGB
Maximum Input Resolution	HDMI	1920×1080p@60 1920×1200p@60RB
Maximum Output Resolution	LAN (Streaming)	1920×1080p@60 1920×1200p@60RB

Audio
Form	HDMI	LPCM (8 channels), High Bitrate

Enclosure
Chassis material	Metal (Steel)
Color	Black
Dimensions	128mm×25mm×116mm
Weight	364g

Power
Power Supply	DC 5V/2.6A (Locking)
Power Consumption	4.2W

CH-331H-TX Product List

Encoder ×1
Power Adapter (DC 5V/2.6A)
3.5mm IR Extension Cable ×1
3.5mm IR Transmitter Cable ×1
3.5mm to DE-9 Female Adapter Cable ×1
Shockproof Pads ×1
Original User Manual ×1

CH-331H-RX Product List

Decoder ×1
Power Adapter (DC 5V/2.6A)
3.5mm IR Extension Cable ×1
3.5mm IR Transmitter Cable ×1
3.5mm to DE-9 Female Adapter Cable ×1
Shockproof Pads ×1
Original User Manual ×1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.
