EHE220 USB 3.1 Gen 2 M.2 Horizontal Dock

M.2 / mSATA external

Quick-Latch Replacement for Speed

Product Features

M & B+M Key

Bit Rate

Quick Latch Design

Support

Product Introduction

Specification Table

File Download

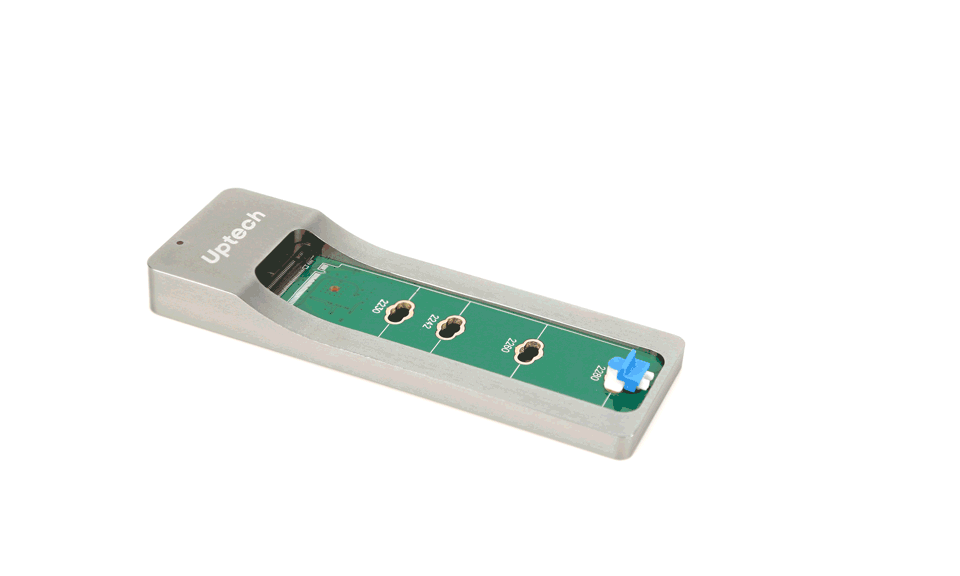

Horizontal Dock with Quick Latch

The EHE220 features a horizontal design with a quick-latch mechanism, allowing you to replace M.2 SSDs swiftly.

Data Access at a Glance

EHE220 supports an LED read/write indicator for easy monitoring of data access.

Two Interfaces, Four Sizes

EHE220 supports both M and B+M Key interfaces and accommodates four sizes: 2230, 2242, 2260, and 2280. One dock solves compatibility issues with different M.2 SSD keys and sizes.

Supports SSD Key

Supports NVMe

High-Speed Performance, Tested Speeds

Test Environment(A)
Hard Drive Model	PLEXTOR PX-128M7VG 128GB
Operating System	Windows 7 64bit
Processor	intel(R) core(TM) i5-6400 cpu @ 2.70GHz
Motherboard	ASUS B150-PlLUS
Memory	8G

Test Environment(B)
Hard Drive Model	WD SN700 250GB
Operating System	Windows 7 64bit
Processor	intel(R) core(TM) i5-6400 cpu @ 2.70GHz
Motherboard	ASUS B150-PlLUS
Memory	8G

Product Application

Laptop Repair and Data Backup

Production Testing and Quality Control

Quick Office Data Access

Product Comparison Table

Product List

EHE220 x1

USB Type-C (male) to Type-A (female) cable x1

Chinese quick installation guide x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

Specification

Please drag left and right to view the specification table

Specifications

晶片

端子介面

速度

尺寸

重量

Key

適用M.2尺寸

適用系統

Specifications

Content

晶片

Realtek

端子介面

USB Type-C

速度

10 Gbps

尺寸

本體 :111 x 38 x 11.5 mm 線長 : 約 33 cm

重量

約 44g (淨重)

Key

M.2 B+M & M Key

適用M.2尺寸

2230 / 42 / 60 / 80

適用系統

Windows / MacOS / Linux

※不支援熱插拔M.2 SSD

※M.2 SSD 最大支援至8TB

File Download

Date

Type

Operating System

Description

File Download

2021.01.22

Product Catalog

Details

0.6MB

PDF
