EHE225 USB3.2 10Gb M.2外接盒

M.2 / mSATA external

EHE225 USB3.2 10Gb M.2 External Enclosure

Compatible with NVMe/SATA M.2 Specifications

Product Features

Compatible Sizes

Support

Speed

Tool-Free Installation

Product Introduction

File Download

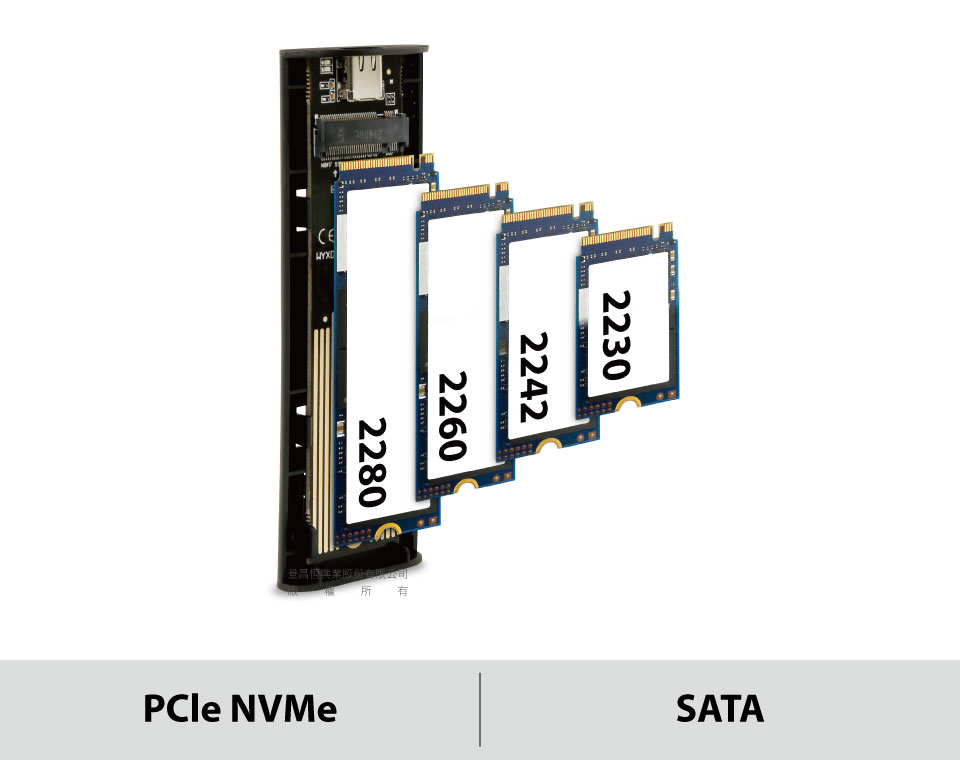

Compatible with Two Specifications and Four Sizes

The EHE225 supports both NVMe and SATA M.2 specifications and includes mounting holes for four sizes: 2230, 2242, 2260, and 2280. One enclosure allows reading multiple M.2 SSD specifications and sizes.

Tool-Free, Easy Installation

Say goodbye to traditional screw-based installation. With just three simple steps, you can start using the enclosure.

Includes Combo Cable

Aluminum Alloy Enclosure for Better Heat Dissipation

Performance Testing

Device Type	Laptop
Device Model	ASUS ExpertBook B3402FE
Device Version	Windows 11
Test Port	Thunderbolt 4(USB-C)
Speed Test Software	CrystalDiskMark V8.0 x64
SSD Type	PCI NVMe	SATA
SSD Model	WD BLACK SN770 500 GB	SanDisk X600 128GB
Test Results

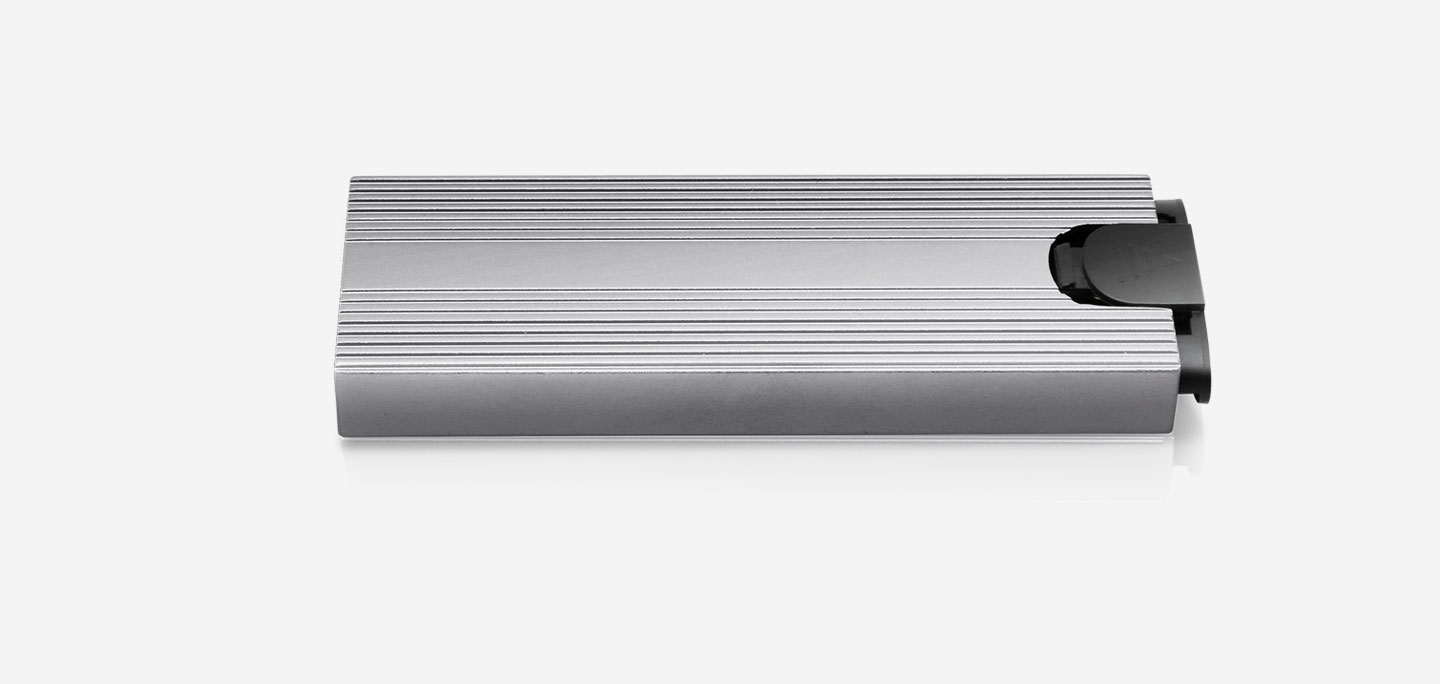

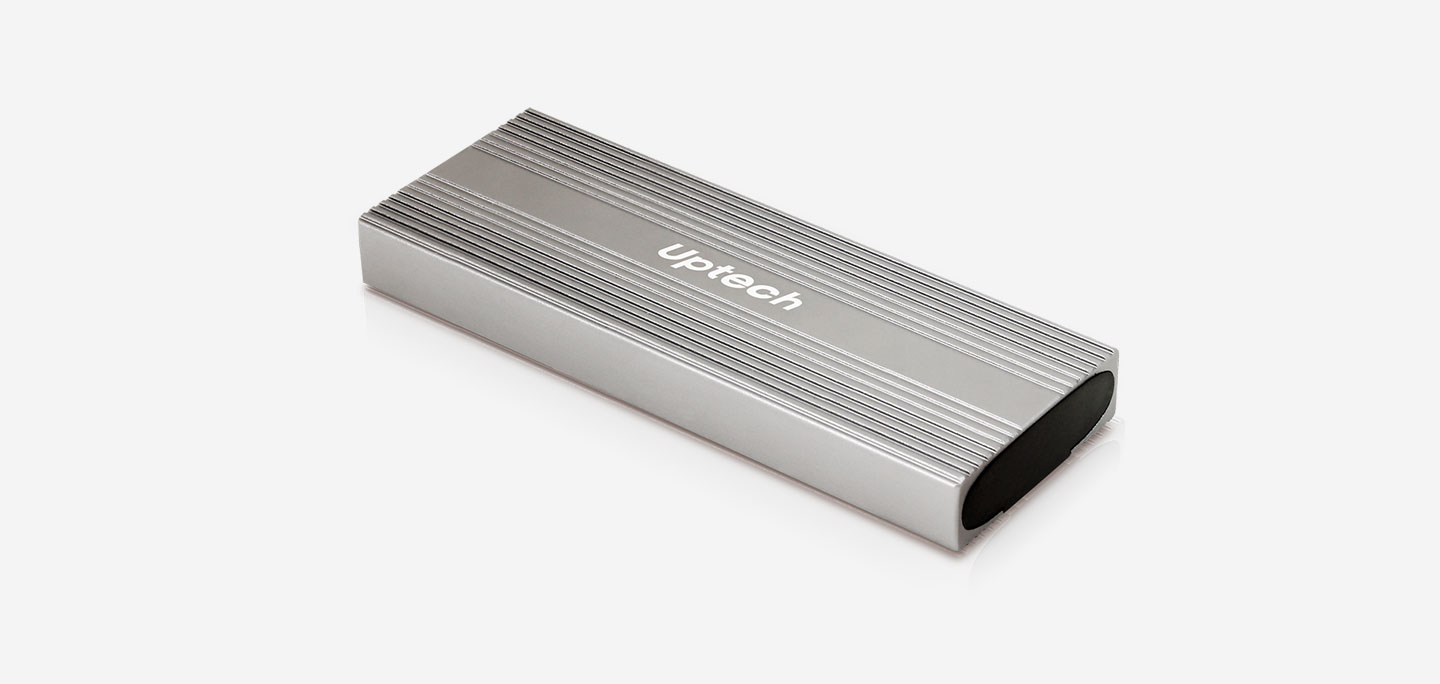

Product Appearance

Product Application

Product Specifications

Uses JMicron High-Speed Control Chip.
USB 3.2 Gen 2 specification, with a transfer speed of 10Gbps.
USB-C connector, reversible.
Supports NVMe and SATA protocol M.2 SSDs.
Supports MKey and B+M Key interfaces.
Supports 2230, 2242, 2260, and 2280 sizes.
Supports UASP protocol.
Includes cable for USB-A or USB-C device use.
Tool-free design for easy installation.
Plug-and-play with no driver installation required.
Compatible with Windows, macOS, and Linux.
Dimensions: 100 x 39 x 12 mm.
Net Weight: 49.5 g (±1).
Material: Aluminum Alloy Enclosure, Metal/Plastic Components.
Made in China.
Note: Supports up to 2TB M.2 SSD.

Product List

EHE225 x1

USB-C Combo Cable x1

Hard Drive Mounting Clips x2

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2024.01.25

Product Catalog

Details

1.2MB

PDF
