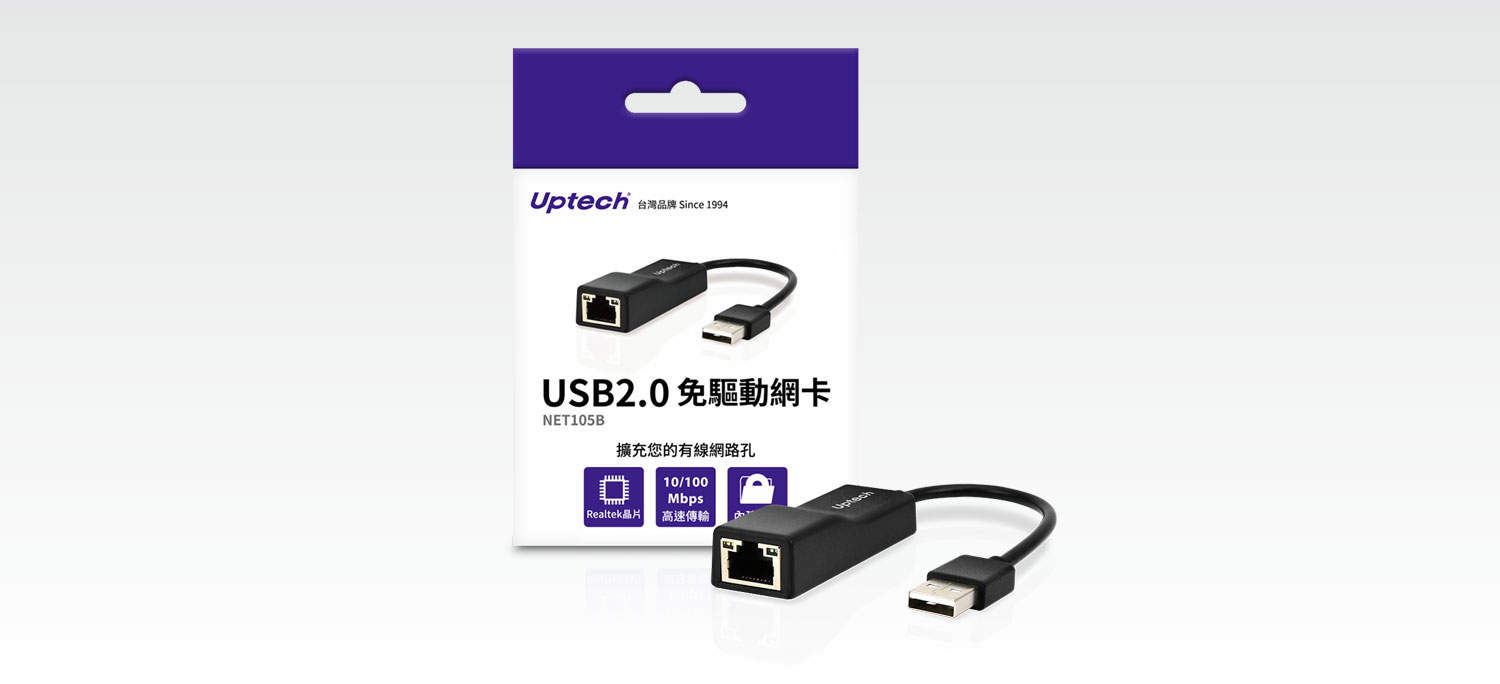

NET105B USB 2.0 Driver-Free Network Adapter

external network card

Expand Your Wired Network Ports

Product Features

Realtek Chipset

High-Speed Transmission

Built-in Drivers

Support

Indicator Lights

Product Introduction

File Download

High-Speed Network Chip

The NET105B uses a Realtek chipset, supporting 10/100Mbps network transmission, ensuring stable transmission quality.

Optional CAT5E/6 High-Speed Ethernet Cable for Smoother Internet Connectivity

Product Specifications

Uses Realtek High-Speed Ethernet Controller Chip
The device has built-in drivers and automatically creates a virtual CD drive, eliminating the need to download drivers from the internet.
※Some computers will automatically install the drivers without displaying the installation prompt.
Interface: USB 2.0, compatible with USB 1.1 / 1.0 standards, supports hot swapping.
Network Transmission: Supports 10 / 100Mbps network speeds.
Duplex Mode: Supports full-duplex/half-duplex auto-negotiation.
LED Indicators: Includes LED status lights.
Protocol Support: Supports IPV4 / IPV6 protocols.
Flow Control: Supports full-duplex IEEE 802.3X flow control.
Network Standards: Complies with IEEE 802.3 / 3u standards.
Energy-Efficiency: Meets IEEE 802.3x energy-efficient Ethernet standards.
Supported Systems: Windows XP, Vista, 7, 8/8.1, 10, MacOS, Linux, ChromeOS.
Dimensions (L x W x H): 65 x 21 x 14 mm.
Cable Length: 150 mm (with USB connector) / 70 mm (without USB connector).
Operating Temperature: 0℃ to 55℃
Storage Temperature: -10℃ to 80℃
Weight: 24g
BSMI Certification: D33C64

Product Application

Expand Wired Network Ports

Uses USB Interface to Solve the Issue of Faulty or Missing Network Ports on Desktop Computers.

Wired Streaming: Fast and Stable

Use a mobile adapter cable to connect the NET105B, providing faster and smoother streaming with no lag.

Test Results Below: iPhone X + Lightning to USB 3 Camera Adapter + NET105B

iPhone: Requires Lightning to USB 3 Camera Adapter

Android: Requires OTG to USB Adapter Cable

Note: Performance may vary depending on the operating system and phone model.

Product List

NET105B Main Unit x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2020.06.15

Product Catalog

Details

0.6MB

PDF

2018.11.13

Driver

Details

Linux 2.4 Kernel

Linux 2.6 Kernel

Linux 3.0 Kernel

Win Server 2008 R2 32-bit

Win Server 2008 R2 64-bit

Win Server 2012 32-bit

Win Server 2012 64-bit

Win XP SP2

Win 7 32-bit

Win 7 64-bit

Win 8 32-bit

Win 8 64-bit

Win 8.1 32-bit

Win 8.1 64-bit

Win 10 32-bit

Win 10 64-bit

Please visit the Realtek official website to download the latest drivers:
Realtek Official Website
