NET136H USB 3.0 Giga免驅動網路卡+HUB集線器

external network card

NET136H USB 3.0 Giga Driver-Free Network Adapter + HUB Hub

Aluminum Alloy Material, Combining Quality, Style, and Aesthetics

Product Features

Taiwan-Made High-Efficiency Chip

Expansion Ports

High-Speed Network

Aluminum Alloy Material

Certification

Product Introduction

File Download

Product Specifications

Material: Aluminum alloy design, combining quality, style, and aesthetics.
Chipset: Uses GENESYS USB controller chip.
Network Chipset: Utilizes Realtek high-speed Ethernet controller chip, plug-and-play with no driver installation required.

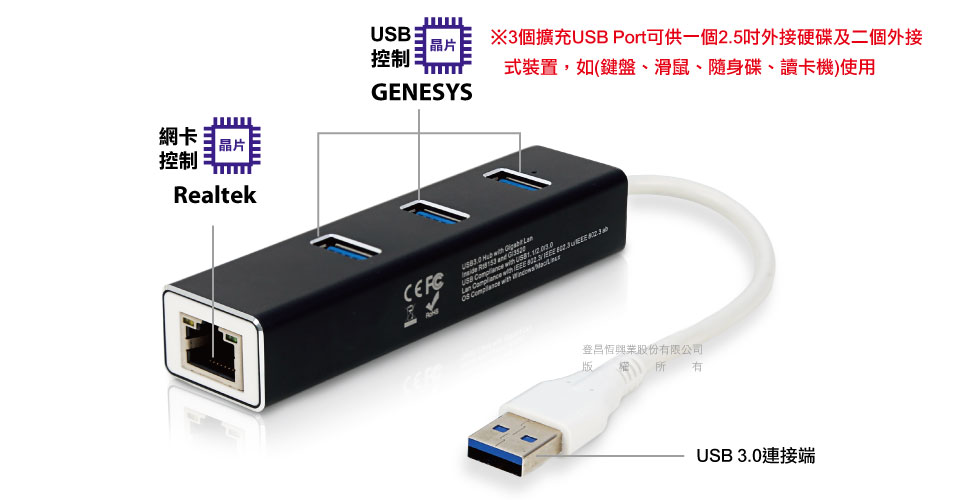

Ports: Features 3 USB3.0 HUB ports + 1 RT8153 Giga network card port.
LED Indicators: Independent LED work status indicators.
USB Port Extension: Each USB port can be extended up to 3 meters.
Compatibility: Compatible with USB3.1 Gen1 / 2.0 / 1.1 interface devices.
Network Speed: Supports network transmission speeds of 10 / 100 / 1000Mbps.
Dimensions: 105 x 27 x 19 mm.
Weight: 58g.
USB Cable Length: 160 mm (including USB connector).
Interface: USB3.0 interface, supporting up to 5Gbps theoretical transfer speed.
BSMI Certification: D33C64.

Product Application

System Requirements

Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2008 / 2008 R2 / 2012
Mac OS 10.6 - 10.13
Linux Kernel 4.15

Product List

NET136H Main Unit x1

Chinese quick installation guide x1

Product warranty card x1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

File Download

Date

Type

Operating System

Description

File Download

2016.08.02

Manual

Details

0.8MB

PDF

2016.06.06

Product Catalog

Details

0.5MB

PDF

2018.01.25

Driver

Details

Mac OS 10

Win Server 2003 32-bit

Win Server 2003 64-bit

Win Server 2008 R2 32-bit

Win Server 2008 R2 64-bit

Win Server 2008 32-bit

Win Server 2008 64-bit

Win Server 2012 32-bit

Win Server 2012 64-bit

Win XP SP2

Win XP 64-bit

Vista 32-bit

Vista 64-bit

Win 7 32-bit

Win 7 64-bit

Win 8 32-bit

Win 8 64-bit

Win 8.1 32-bit

Win 8.1 64-bit

Win 10 32-bit

Win 10 64-bit

The link leads to the Realtek official website for the latest drivers:
Realtek Official Website

2016.08.02

Driver

Details

Win XP SP2

Vista 32-bit

Vista 64-bit

Win 7 32-bit

Win 7 64-bit

Win 8 32-bit

Win 8 64-bit

Win 8.1 32-bit

Win 8.1 64-bit

Win 10 32-bit

Win 10 64-bit

5.0MB

ZIP

V7.23.218.201
