PS1000S

PE1000S

Rugged Edge Computer

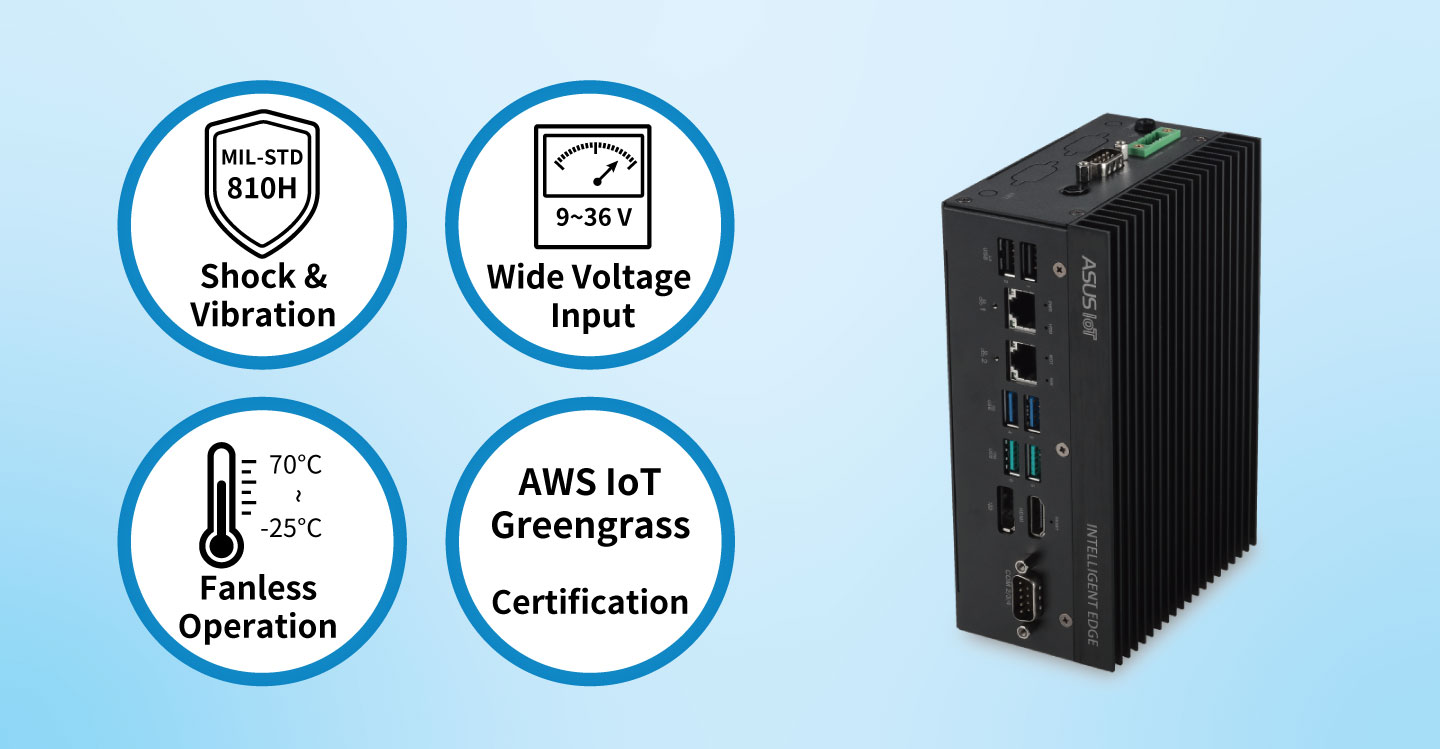

A high-performance fanless edge computer built for harsh environments. With advanced thermal and power design, it operates reliably from -25°C to 70°C and supports a wide 9–36V DC input range.

MIL-STD-810H certified for shock and vibration resistance, it’s made for demanding applications—from smart factories and intelligent transportation to kiosks and beyond.

Specfications

Processor	CPU	Intel® Atom x6425E	Intel® Atom x6413E	Intel® Celeron J6412
	TDP	12W	9W	10W
	of Cores	4	4	4
	Base Freq.	2.0 GHz	1.5 GHz	2.0 GHz
	Max Turbo Freq.	3.0 GHz	3.0 GHz	2.6 GHz
	Memory	1 x SO-DIMM, DDR4 supports up to 3200 MHz, max 32 GB

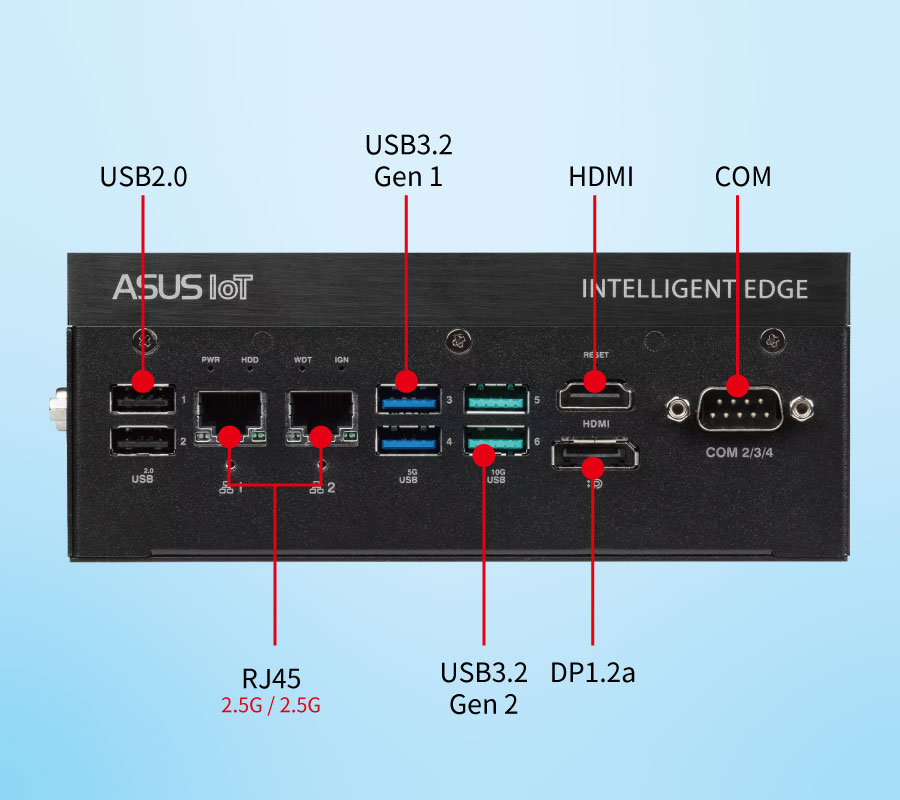

I/O Interfaces	Display	1 x HDMI 1.4b, supports up to 4096 x 2160 @ 30 Hz 1 x DP 1.2a, supports up to 4096 x 2160 @ 60 Hz

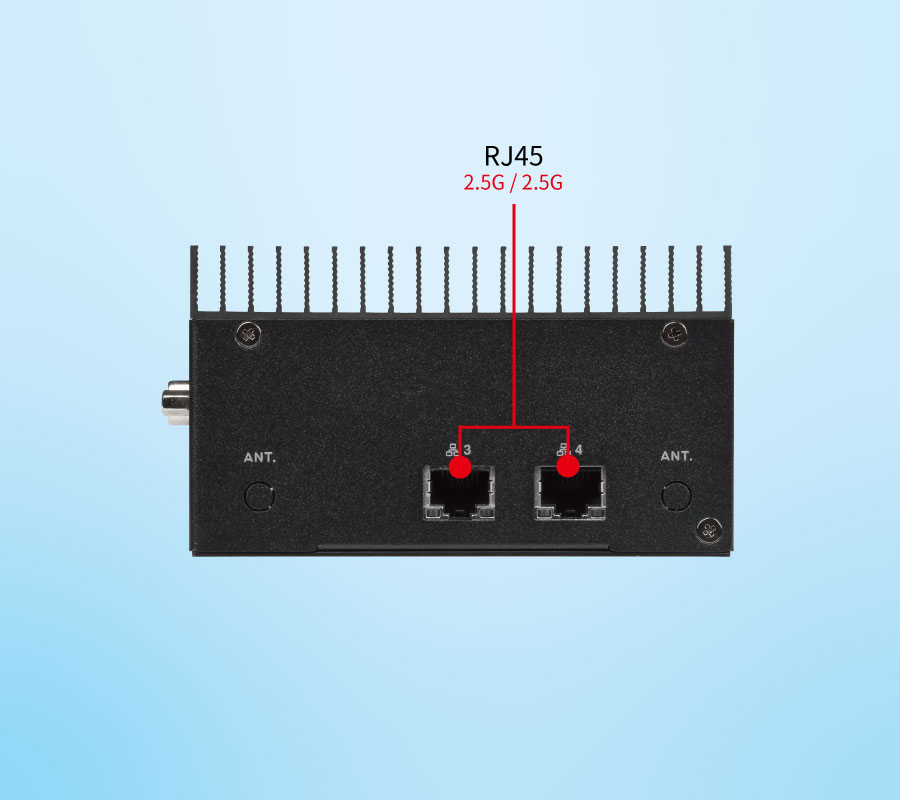

	Ethernet	2 x 2.5 GbE, RJ45 (lntel® i226-IT) 2 x 2.5 GbE, RJ45 (lntel® i226-IT, PoE SKU supports IEEE 802.3at, PSE)
	USB	2 x USB 3.2 Gen 2 (10Gbps) 2 x USB 3.2 Gen 1 (5Gbps) 2 x USB 2.0
	COM	1 x RS-232/422/485 3 x 3-wire RS-232 or 1 x RS-422/485 2 x RS-232 (optional, cannot coexist with GPIO)
	GPIO	1 x 8-bit GPIO (optional, female type, cannot coexist with 2 x RS-232)
Storage	2.5” SATA	1 x 2.5” HDD/SSD (cannot coexist with PoE SKU)
	M.2 M Key	1 x M.2 2280 M key socket (PCIe x2/ SATA)
Expansion Slot	M.2 E Key	1 x M.2 2230 E key socket (PCIe x1/ USB2.0)
	M.2 B Key	1 x M.2 3042/3052 B key socket with nano-SIM slot (USB 3.2 Gen1/ USB 2.0)

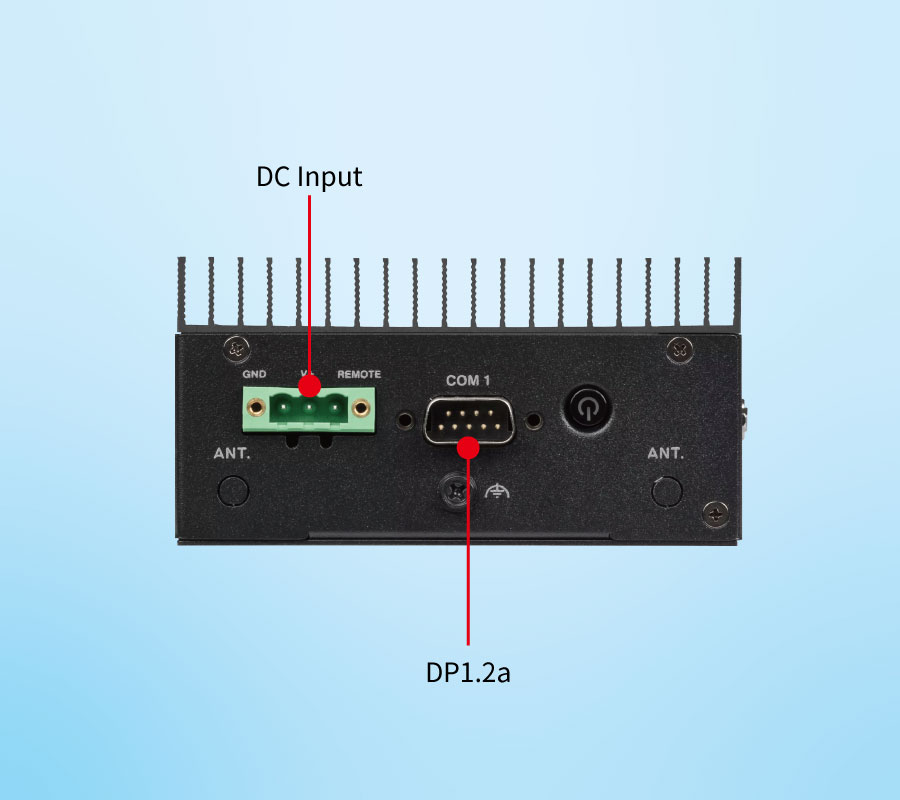

Power	Power Input	9 to 36 V DC-in, 3-pin terminal block (GND, V+, Remote)
Mechanical	Mounting	Din Rail
	Dimensions	56 x 110.2 x 160mm 63 x 110.2 x 160mm (PoE SKU)
	Weight	1.017kg 1.265kg (PoE SKU)
Environment	Operating Temp.	-25° C to 70°C 1,2 -25° C to 60°C 1,2 (PoE SKU)
	Storage Temp.	-40 ~ 85°C
	Relative Humidity	10 ~ 95% (non-condensing)
	EMC	CE, FCC, BSMI
	Safety	CE-LVD, CB, BSMI, CCC
	Vibration	Operating: MIL-STD 810H Method 514.8, Category 4 & 5Grms, 5-500 Hz, 3 Axes
	Shock	Operating: MIL-STD 810H Method 516.8, Procedure I, Table 516.6-ll; 40 G 11ms
	Green	GA (RoHS)
Security	TPM	On-board TPM v2.0 powered by Nuvoton NCPT 750 Watchdog timer
Others	Watch Dog Timer	Supported
	Operating System	Windows® 10 IoT Enterprise (64-bit) Linux by Project support
	Software compatibility	AWS IoT Greengrass
