PE5101D

Rugged Edge Computer

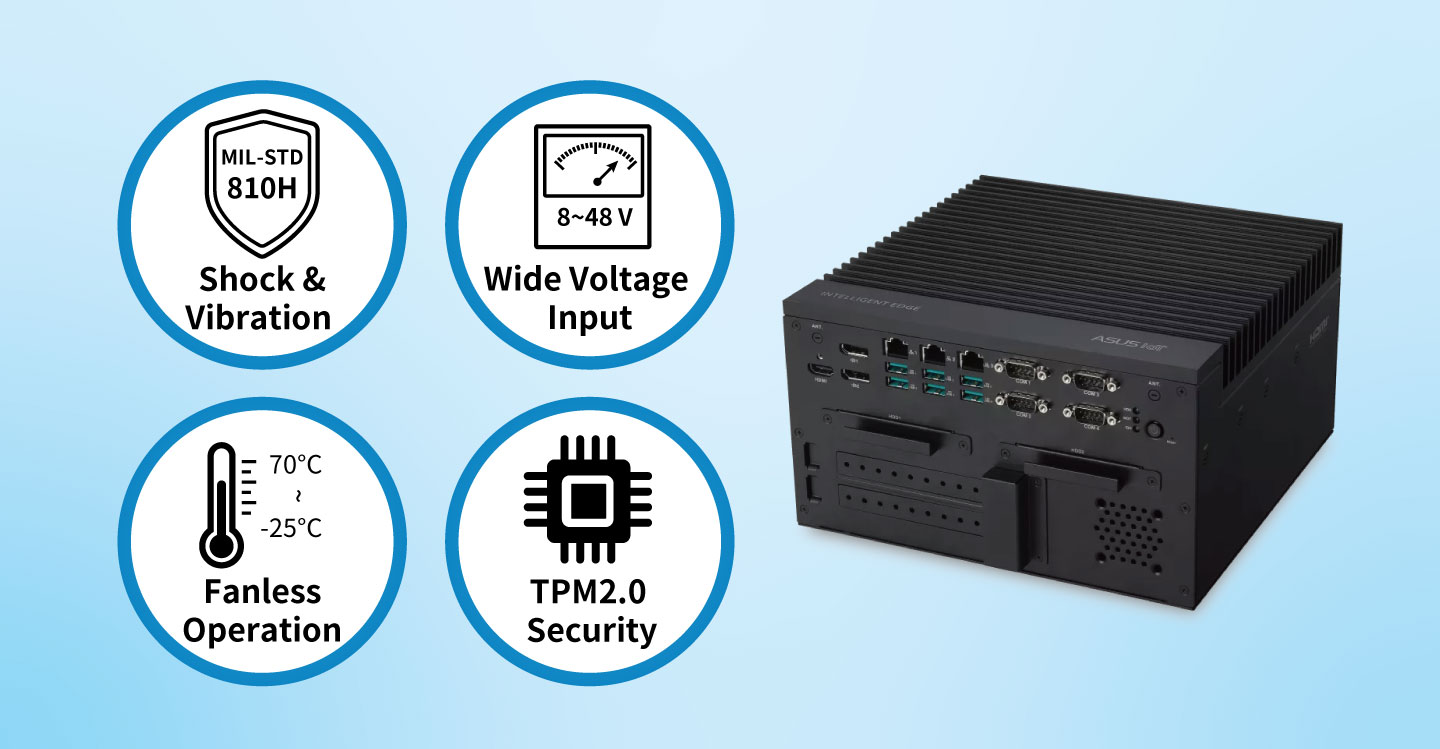

A durable, high-performance fanless edge computer with outstanding thermal and power design. It operates reliably in environments from -25°C to 70°C and supports a wide 8V to 48V DC input range. Its mechanical design complies with the MIL-STD-810H U.S. military standard, enabling it to withstand shock and vibration in demanding conditions. Ideal for harsh application scenarios such as smart factories, intelligent transportation, and information kiosks.

Specfications

14th Gen Processor	CPU	Intel Core i9-14900T	Intel Core i7-14700T	Intel Core i5-14500T	Intel Core i3-14100T
	TDP	35W	35W	35W	35W
	# of Cores	24	20	14	4
	Core Base Freq	1.1 GHz	1.3 GHz	1.7 GHz	2.7 GHz
13th Gen Processor	CPU	Intel Core i9-13900T	Intel Core i7-13700T	Intel Core i5-13500T	Intel Core i5-13100T
	TDP	35W	35W	35W	35W
	# of Cores	24	16	14	4
	Core Base Freq	1.0 GHz	1.1 GHz	1.3 GHz	2.4 GHz
System	Chipset	Intel R680E
	Memory	2 x SO-DIMM (supports DDR5 ECC/non-ECC, up to 4800 MHz, max. 64GB)

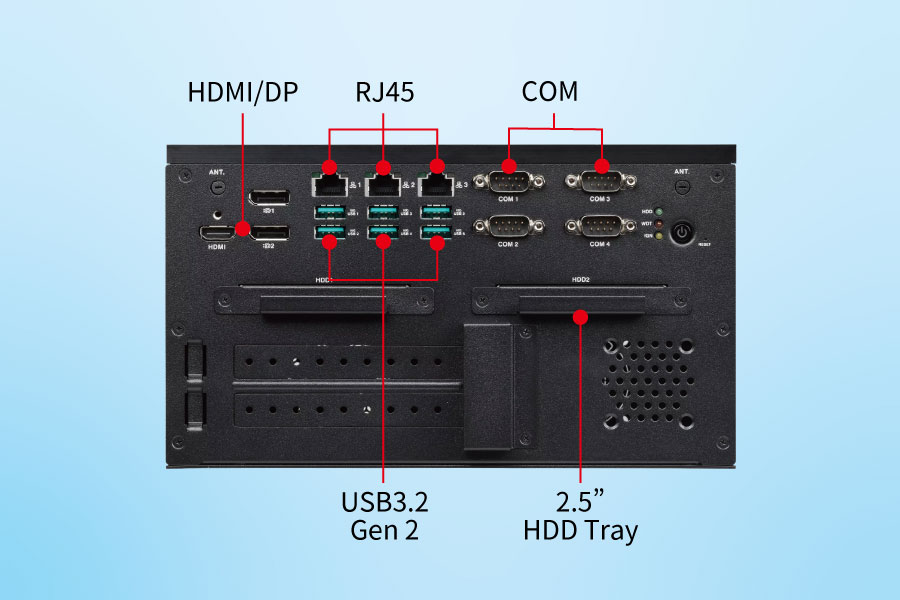

I/O Interfaces	Display	1 x HDMI, supports up to 4096 x 2160 @ 30 Hz 2 x DP++, supports up to 4096 x 2160 @ 60 Hz
	Ethernet	3 x 2.5 GbE, RJ45 (Intel® i226-IT)
	USB	2 x USB 3.2 Gen2 2 x USB 3.2 Gen1, type A 2 x USB 2.0, type A
	Audio	1 x Mic-in, phone jack 1 x Line-out, phone jack
	AMT	Supports Intel® vPro/ AMT
	USB	6 x USB 3.2 Gen 2 (10Gbps) 2 x USB 3.2 Gen 1 (5Gbps) 2 x USB 2.0
	COM	2 x RS-232/422/485 4 x RS-232
	Audio	1 x Mic-in 1 x Line-out
	DIO	8-bit isolated DIO(4-in/4-out, terminal block, optional)
Storage	2.5” SATA	2 x 2.5” (supports hot-swappable SSD/HDD tray, RAID 0/1)
	M.2 M Key	1 x M.2 2280 M-key (PCIe Gen4x4)
Expansion Slot	M.2 E Key	1 x M.2 2230 E-key (PCIex1/USB2.0)
	M.2 B Key	1 x M.2 3042/3052 B-key with dual nano-SIM slot (PCIex1/USB 3.2 Gen1/USB2.0)
	Mini PCIe	1 x Mini PCIe socket (PCIex1/USB 2.0)
	PCIe Slot	1 x PCIe Gen4 x4 slot 1 x PCIe Gen4 x16 slot, the max in size 229 x 123.24 x 49.6 mm

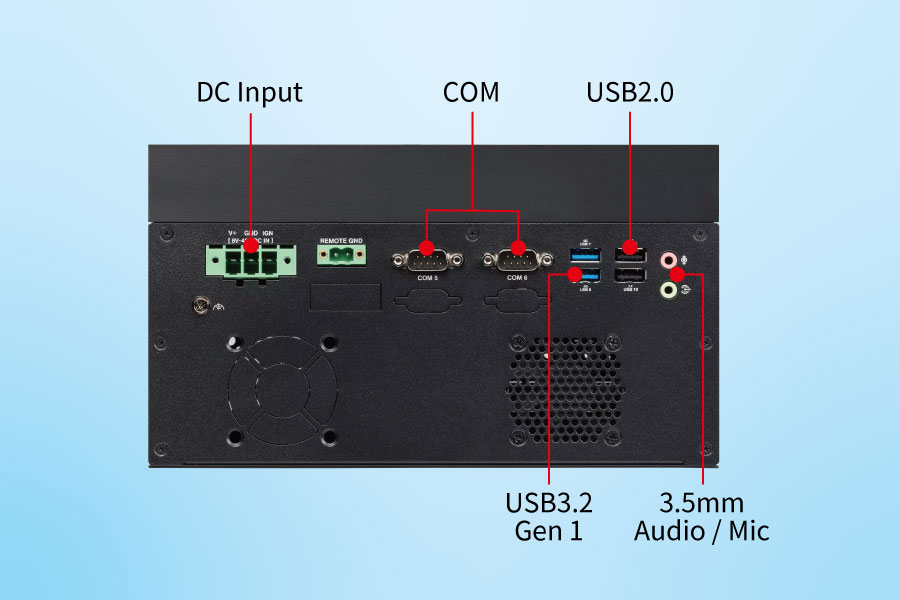

Power	Power input	8 to 48 V DC-in, 3-pin terminal block (V+, GND, IGN)
	Remote switch	2-pin terminal block (Remote, GND)
Mechanical	Mounting	Wall-mount
	Dimensions	242 x 241.4 x 137mm
	Weight	5.81 kg
Environment	Operating Temp.	-20~60°C
	Storage Temp.	-40~85°C
	Relative Humidity	10 ~ 95% (non-condensing)
	EMC	CE, FCC, BSMI
	Saftey	CE-LVD, CB, BSMI, CCC
	Vibration	Operating: MIL-STD 810H Method 514.8, Category 4 & 3Grms, 5-500 Hz, 3 Axes
	Shock	Operating: MIL-STD 810H Method 516.8, Procedure I, Table 516.6-ll; 20 G 11ms
	Green	GA (RoHS)
Security	TPM	Supports dTPM v2.0
Others	Watch Dog Timer	Supported
	Operating System	Windows® 11 IoT Enterprise (64-bit) Windows® 10 IoT Enterprise (64-bit) Linux by Project support
