PE2000S

Rugged Edge Computer

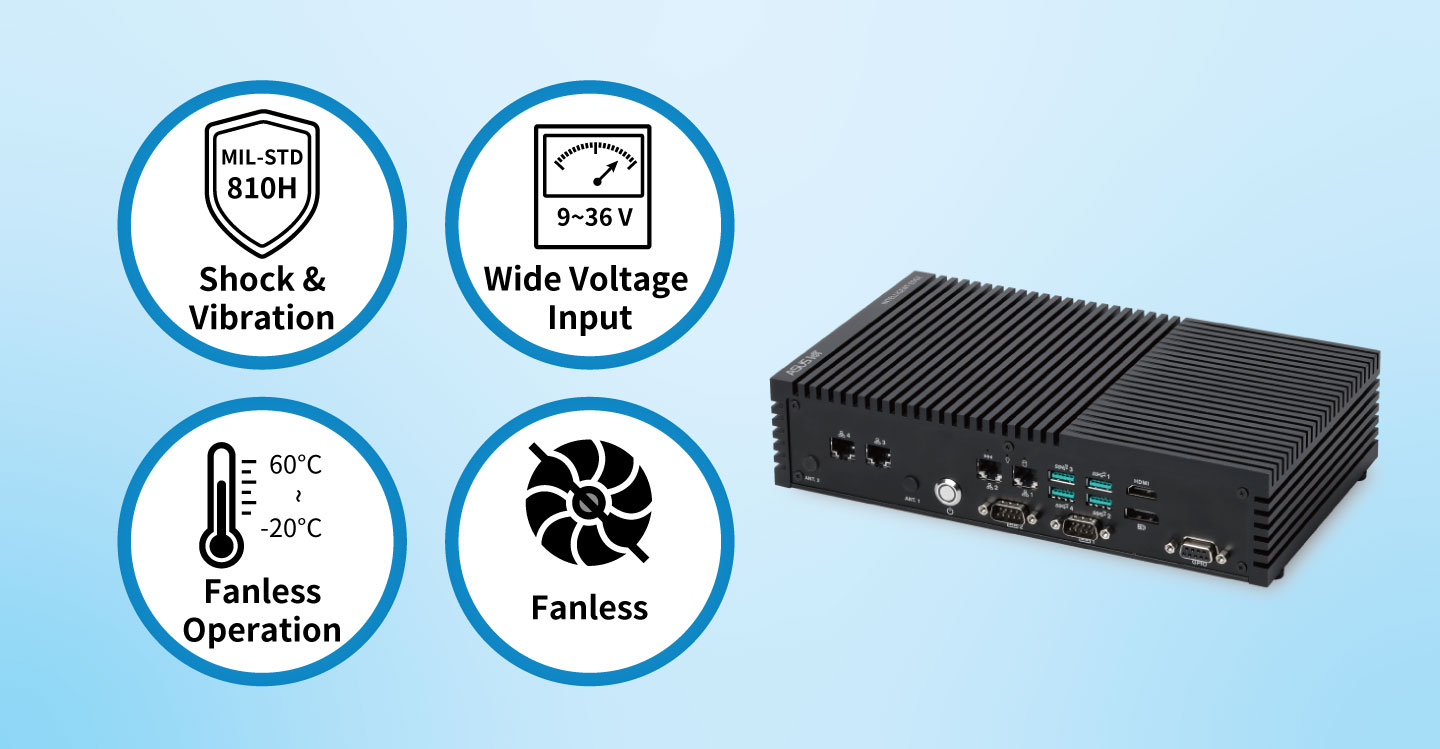

A high-performance fanless edge computer built for harsh environments. With advanced thermal and power design, it operates reliably from -20°C to 60°C and supports a wide 9–36V DC input range.

MIL-STD-810H certified for shock and vibration resistance, it’s ready for demanding deployments—from smart factories and intelligent transportation to kiosks and beyond.

Specfications

Processor	CPU	Intel Processor N97	Intel Processor N200	Intel Core i3-N305	Intel Atom X7425E
	TDP	12W	6W	15W	12W
	# of Cores	4	4	8	4
	Core Base Freq.	2.0 GHz	1.0 GHz	1.8 GHz	1.5 GHz
	MaxTurbo Freq.	3.6 GHz	3.7GHz	3.8 GHz	3.4 GHz
	Memory	1 x SO DIMM, DDR5 4800 MHz, supports up to 16GB
External Interfaces	Display	1 x HDMI 2.0, supports up to 4K x 2K @ 60 Hz 1 x DP1.2, supports up to 4096 x 2304 @ 60 Hz

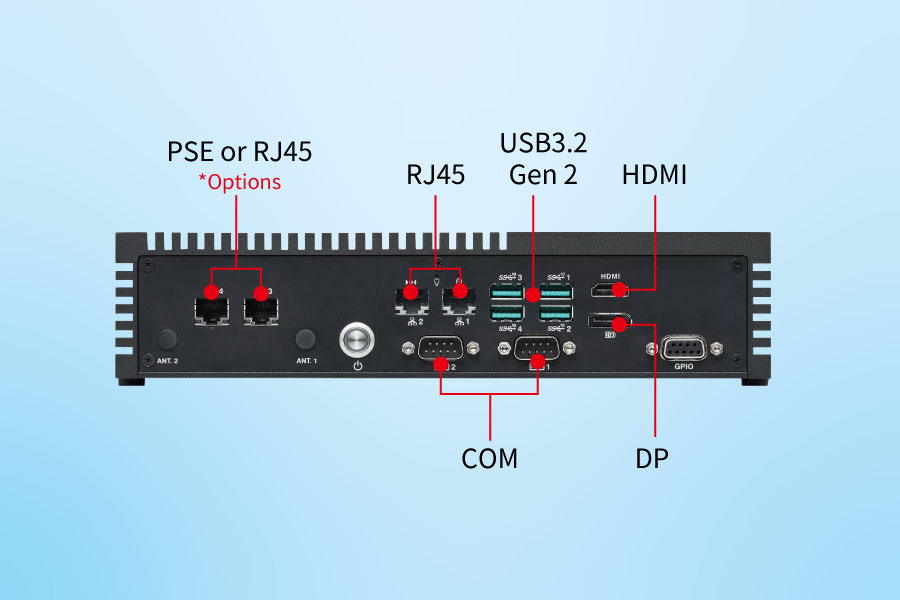

	Ethernet	2 x 10/100/1000 Mbps, RJ45 (2 x Intel i210AT (1Gb)) 2 x 802.11af PSE ports, RJ45 (optional)* 2 x 10/100/1000 ethernet ports, RJ45 (optional)* *either one
	USB	4 x USB 3.2 Gen 2, type A 2 x USB 2.0, type A
	Audio	1 x Mic-in, phone jack 1 x Line-out, phone jack
	COM	2 x COM: RS-232/422/485, DB9 (COM1/COM2) 4 x COM: RS232, DB9 (COM3/COM4/COM5/COM6) • COM5/COM6 couldsupport CANbus (optional) • COM5/COM6 couldsupport RS485 (optional)
	GPIO	1 x 8bit GPIO, DB9
Expansion	Mini PCIe	1 x Full-Length Mini PCIe slot with on-board Nano-SIM socket (support CANbus module, PoE/LAN board, LTE)
	M.2 M Key	1 x M.2 2242/2280 M key socket (SATA)
	M.2 E Key	1 x M.2 2230 E key socket (USB2.0/CNVi mode/PCIe) supports TPU/ WiFi /BT module
	2.5” SATA	1 x SATA 6Gb/s connector supports 2.5'' SSD
	SIM	1 x nano-SIM slot (on-board)
Power	System Power	9 to 36 V DC, 2-pin terminal block
	Power Supply	90W (Optional) ; 120W for PoE sku (Optional)
Mechanical	Mounting	Wall mount
	Dimension	254 x 147 x 57 mm
	Weight	2.45 kg
Environment	Operating Temp.	-0~60℃ with wide temperature parts Storage Temp. 0~50℃ with commercial temperature parts
	Storage Temp.	-40 ~ 85°C
	Relative Humidity	10 ~ 95% (non-condensing)
	EMC	CE, FCC, BSMI
	Safety	CB, CE-LVD, BSMI
	Vibration	Operating, MIL-STD-810H, Method 514.8 , Category 4 (Truck transportation over US highways) ; 5-500 Hz (Max. 5Grms), 3 Axes
	Shock	Operating, MIL-STD-810H, Method 516.8, Procedure I (40G/11ms)
	Green	GA (RoHS)
Security	TPM	TPM V2.0 powered by Nuvoton NCPT 750 (Optional)
Others	Watch Dog Timer	HW WDT Enable (WDT_EN)
	Operating System	Windows® 11 IoT Enterprise/ Windows® 10 IoT Enterprise
