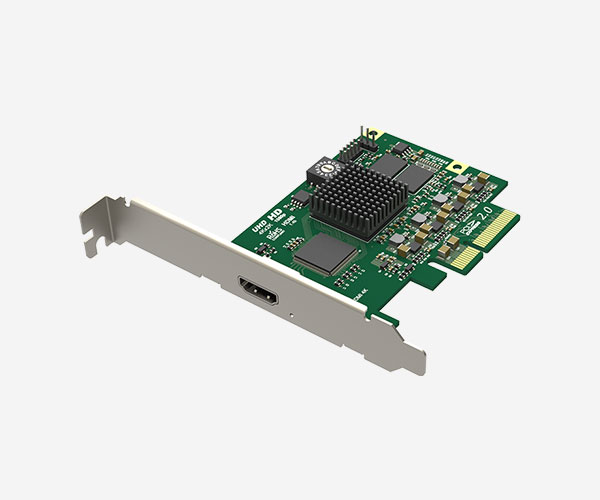

Pro Capture HDMI 4K Video Capture Card

Magewell

Complete support for standard development interfaces and all mainstream industrial software

Product Features

4K2K Capture

Multiple color output options

Supports HDMI 1.4

PCI-e x4 interface

Product Introduction

Specification Table

File Download

True 4K Resolution Capture, No Special SDK Required
Supports HDMI input
Supports HDMI 1.4 / 4K30fps
Uses the standard Magewell Pro Capture universal driver
Compatible with industry-leading Magewell Pro Capture SDK
PCI-Express X4 high-speed interface
Automatic detection of input signals
Compatible with Windows, Linux, Mac OS
Supports a complete standard development interface (SDK) and all mainstream industrial software with high software compatibility
Markets and applications include broadcasting, surveillance, medical imaging, gaming, video wall design, and film production

HDMI Port 4K2K Capture

Professional Video Processing

Provides color adjustment functions, allowing fine-tuning of brightness, contrast, saturation, and gamma values. The brightness and contrast of RGB channels can be individually adjusted. It also features dynamic deinterlacing to prevent motion blur and ensure clearer images.

High-Performance Output

Through PCI-E interface high-speed transmission, it reduces CPU load, significantly improving work efficiency and achieving higher transmission rates and quality effortlessly.

Compatible with Multiple Applications for Simultaneous Capture

Allows multiple applications to capture a single signal source simultaneously, without reducing the frame rate (fps) of each transmission channel, ensuring efficient workflow.

Stable and Reliable Product

6-layer PCB design, using high-quality chips and capacitor components. Product stability is verified through a 7-day x 24-hour continuous load test.

High Software Compatibility

Uses a standard AV Stream driver architecture, compatible with various applications that support the DirectShow interface.

Product Application

Video Capture Card Series Comparison Table

Product List

Pro Capture HDMI 4K ×1

Low Profile ×1

※The product specifications and accessories mentioned in the user manual are for reference only. Any changes will not be notified in advance. UPMOST reserves the right to modify product design, accessories, and drivers.

Specification

Please drag left and right to view the specification table

Specifications

Supported Operating Systems

Supported APIs

Supported Software

Input Interface

Output Interface

Input Features

HDMI Signal-Related Features

Output Formats

Video Processing Functions

Multi-Card Support

Multi-Stream Output

Supports Ultra-Low Latency

Timestamp and A/V Synchronization

Video Output SG-DMA

SDK

Windows Driver Customization

Firmware Upgrade

LED Indicator

Dimensions

Power Consumption

Operating Environment

Specifications

Content

Supported Operating Systems

● Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64)
● Linux (based on V4L2, supports x86, x64 & ARM architectures)

Supported APIs

● Windows
　DirectShow
　DirectKS
　Wave API/DirectSound/WASAPI
● Linux
　V4L2
　ALSA

Supported Software

● VLC
● VirtualDub
● OBS
● xSplit
● vMix
● VidBlaster
● Wirecast
● Microsoft Media Encoder
● Adobe Flash Media Encoder
● Any other encoding or streaming media software developed using DirectShow or V4L2

Input Interface

● DVI-D 1.0
● HDMI 1.4

Output Interface

PCIe Gen2 x4

Input Features

● Maximum input video resolution supported: 4096x2160

HDMI Signal-Related Features

● 297MHz HDMI receiver
● Automatic HDMI equalizer adjustment
● Supports custom EDID
● Supports extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrame data
● Supports full chroma subsampling
● Supports RGB/YUV 4:4:4 8-bit signals with a pixel frequency up to 297MHz
● Supports YUV 4:2:2 12-bit signals with a pixel frequency up to 297MHz
● Supports RGB/YUV 4:4:4 10/12-bit signals with a pixel frequency up to 170MHz
● Supports 8-channel IES60958/IEC61937 standard audio streams
● Supports extraction of audio format information and channel status data
● Supports extraction of video timing information
● Supports extraction of 3D format information
● Supports extraction of Sony/Canon DSLR timecode
● Supports Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D modes

Output Formats

● Maximum output signal resolution: 4096x2160 pixels
● Maximum output frame rate: 144fps (actual output frame rate may be limited by PCIe bandwidth and resolution)
● Supports 4:2:0 8-bit output formats: NV12, I420, YV12
● Supports 4:2:2 8-bit output formats: YUY2, YUYV, UYVY
● Supports 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
● Supports 4:4:4 10-bit output formats: V410, Y410
● Additional output formats supported through Pro Capture SDK (DirectKS-based version)

Video Processing Functions

● Utilizes two video processing pipelines, each with a processing bandwidth of up to 360M pixels/s
● Full 10-bit video processing
● Video cropping
● Video scaling
● Video deinterlacing
　 Two-field interleaving
　 Two-field blending
　 Top field only
　 Bottom field only
● Video aspect ratio conversion
　 Auto or manual input video aspect ratio selection
　 Auto or manual output video aspect ratio selection
　 Three aspect ratio conversion modes: Ignore (anisotropic), Crop, Fill (black bars on top/bottom or sides)
● Video color space conversion
　 Auto or manual selection of input color space and quantization range
　 Auto or manual selection of output color space, quantization range, and saturation range
　 Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color spaces
　 Supports limited or full quantization range
　 Supports limited, full, and extended saturation ranges
● Video frame rate conversion
● Video OSD overlay
　 Supports PNG format OSD images (maximum resolution: 4096x2160)
　 Dynamic RGBA OSD loading via SDK

Multi-Card Support

● Supports multiple cards in a single system
● Built-in DIP switch with 16 positions (0 to F) for card numbering
● When the DIP switch is set to 1, the system hardware device tree will display: "01: Pro Capture HDMI 4K," and so on
● Video and audio devices displayed in user software will include the card number

Multi-Stream Output

● Any input signal can be output to any number of streams
● Each output stream can be individually configured for cropping, aspect ratio, color space, resolution, frame rate, deinterlacing mode, color adjustments, OSD, etc.

Supports Ultra-Low Latency

● 64-line video delay
● Partial completion notification mode via SDK

Timestamp and A/V Synchronization

● Hardware-based 100ns high-resolution clock
● Audio frames (192 audio samples) and video frames are hardware timestamped upon arrival at the capture card
● Hardware clock synchronization across multiple cards (via SDK)

Video Output SG-DMA

● On PCIe 2.x systems, each DMA channel bandwidth reaches approximately 1200MB/s
● On PCIe 1.x systems, each DMA channel bandwidth reaches approximately 800MB/s
● Supports automatic detection of Intel GPU block-based image surfaces
● Supports AMD GPU DirectGMA
● Supports Nvidia GPU GPUDirect

SDK

● Pro Capture SDK for DirectShow provides developers with a quick way to integrate extended capture card features (Windows)
● Pro Capture SDK for DirectKS provides developers with maximum flexibility and highest performance (Windows)

Windows Driver Customization

● All options can be managed in three levels via registry: all devices, specific models, and specific devices
● Video, audio, and crossbar filter names can be customized via registry

Firmware Upgrade

● Multiple cards in the same system can be upgraded simultaneously
● When the capture card is not in use, upgrades can be completed without shutting down the power
● Secure upgrade: If a power failure or system crash occurs during the upgrade process, the firmware will automatically revert to the factory version (applicable to firmware version 1.21 and later)

LED Indicator

LED indicators display the status of each channel: idle, input signal locked, memory error, or FPGA configuration error

Dimensions

● Half-height PCIe x4 expansion card
● Dimensions: 140mm x 68.88mm (excluding PCIe bracket)

Power Consumption

● Maximum 12V power current: TBD
● Maximum 3.3V power current: TBD
● Maximum power consumption: TBD

Operating Environment

● Operating temperature: 0 ~ 40°C
● Storage temperature: -20 ~ 70°C
● Relative humidity: 5% ~ 90% (non-condensing)
